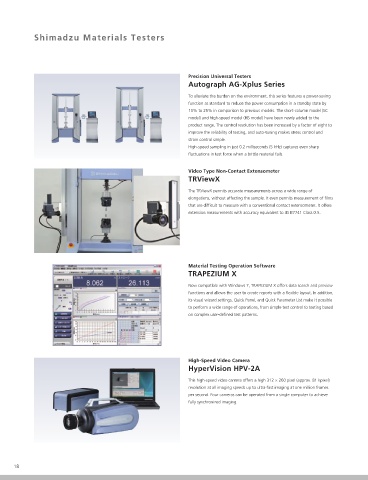

Page 18 - Automotive Aerospace

Shimadzu Materials Testers

Precision Universal Testers
Autograph AG-Xplus Series

To alleviate the burden on the environment, this series features a power-saving
function as standard to reduce the power consumption in a standby state by
10% to 25% in comparison to previous models. The short-column model (SC
model) and high-speed model (HS model) have been newly added to the
product range. The control resolution has been increased by a factor of eight to
improve the reliability of testing, and auto-tuning makes stress control and
strain control simple.
High-speed sampling in just 0.2 milliseconds (5 kHz) captures even sharp
fluctuations in test force when a brittle material fails.

Video Type Non-Contact Extensometer
TRViewX

The TRViewX permits accurate measurements across a wide range of
elongations, without affecting the sample. It even permits measurement of films
that are difficult to measure with a conventional contact extensometer. It offers
extension measurements with accuracy equivalent to JIS B7741 Class 0.5.

Material Testing Operation Software
TRAPEZIUM X

Now compatible with Windows 7, TRAPEZIUM X offers data search and preview
functions and allows the user to create reports with a flexible layout. In addition,
its visual wizard settings, Quick Panel, and Quick Parameter List make it possible
to perform a wide range of operations, from simple test control to testing based
on complex user-defined test patterns.

High-Speed Video Camera
HyperVision HPV-2A
This high-speed video camera offers a high 312 × 260 pixel (approx. 81 kpixel)
resolution at all imaging speeds up to ultra-fast imaging at one million frames
per second. Four cameras can be operated from a single computer to achieve
fully synchronized imaging.
