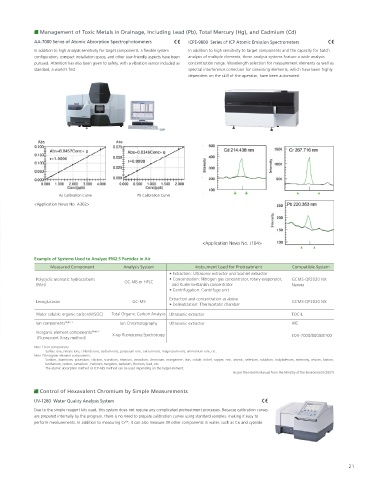

Management of Toxic Metals in Drainage, Including Lead (Pb), Total Mercury (Hg), and Cadmium (Cd)
AA-7000 Series of Atomic Absorption Spectrophotometers ICPE-9800 Series of ICP Atomic Emission Spectrometers
In addition to high analysis sensitivity for target components, a flexible system In addition to high sensitivity to target components and the capacity for batch
configuration, compact installation space, and other user-friendly aspects have been analysis of multiple elements, these analysis systems feature a wide analysis
pursued. Attention has also been given to safety, with a vibration sensor included as concentration range. Wavelength selection for measurement elements as well as
standard, a world's first. spectral interference correction for coexisting elements, which have been highly
dependent on the skill of the operator, have been automated.

As Calibration Curve Pb Calibration Curve
<Application News No. A302>

<Application News No. J104>
Environmental Conservation
Example of Systems Used to Analyze PM2.5 Particles in Air
Measured Component Analysis System Instrument Used for Pretreatment Compatible System
At plant facilities, analyses of toxic elements and VOCs (volatile organic • Extraction: Ultrasonic extractor and Soxhlet extractor
compounds) in drainage are performed, for the purpose of Polycyclic aromatic hydrocarbons GC-MS or HPLC • Concentration: Nitrogen gas concentrator, rotary evaporator, GCMS-QP2020 NX
environmental conservation. In terms of PM2.5 particles, which have (PAH) and Kuderna-Danish concentrator Nexera
• Centrifugation: Centrifuge unit
been increasingly monitored as air pollutants in recent years, measures
are being pursued not only to reduce such particles in automobile gas Levoglucosan GC-MS Extraction and concentration as above GCMS-QP2020 NX
emissions but also from plants. • Derivatization: Thermostatic chamber
Water soluble organic carbon(WSOC) Total Organic Carbon Analysis Ultrasonic extractor TOC-L
Ion components Note 1 Ion Chromatography Ultrasonic extractor HIC
Inorganic element components Note 2 X-ray Fluorescence Spectroscopy
(Fluorescent X-ray method) EDX-7000/8000/8100
Control of VOCs (Volatile Organic Compounds) Control of Fluorine, Nitrate Nitrogen, and Note 1) Ion components:
in Drainage Nitrite Nitrogen in Drainage Sulfate ions, nitrate ions, chloride ions, sodium ions, potassium ions, calcium ions, magnesium ions, ammonium ions, etc.
Note 2) Inorganic element components:
GCMS-QP2020 NX Gas Chromatograph Mass Spectrometer Ion Chromatograph Sodium, aluminum, potassium, calcium, scandium, titanium, vanadium, chromium, manganese, iron, cobalt, nickel, copper, zinc, arsenic, selenium, rubidium, molybdenum, antimony, cesium, barium,
lanthanum, cerium, samarium , hafnium, tungsten, tantalum, thorium, lead, etc.
Headspace Analysis System The modules are centrally controlled by a system controller. Operation is easy, The atomic absorption method or ICP-AES method can be used depending on the target element.
As per the Interim Manual from the Ministry of the Environment (2007)
The outstanding core performance of the HS-20 headspace sampler and and highly reliable analysis results can be obtained. In terms of data processing,
user-friendly design serve as powerful backup for analyzing VOCs in effluent LabSolutions workstation is used, which features excellent security and network
water. compatibility.
Control of Hexavalent Chromium by Simple Measurements
■Peaks
1 1. F
2. Cl UV-1280 Water Quality Analysis System
3. NO2
2 4. Br Due to the simple reagent kits used, this system does not require any complicated pretreatment processes. Because calibration curves
5. NO3
6. PO4 are prepared internally by the program, there is no need to prepare calibration curves using standard samples, making it easy to
7. SO4
6+
3 perform measurements. In addition to measuring Cr , it can also measure 39 other components in water, such as Cu and cyanide.
4 5 7
6

20 21
