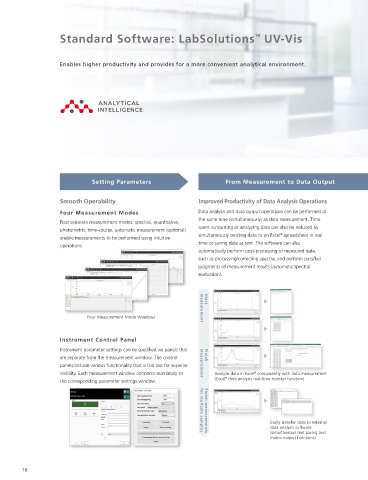

Standard Software: LabSolutions  UV-Vis
                                                                                      ™



                     Enables higher productivity and provides for a more convenient analytical environment.






















                               Setting Parameters                           From Measurement to Data Output                                                                                      Data Management


                     Smooth Operability                            Improved Productivity of Data Analysis Operations                    Automatic Spectral Evaluation                 Stronger Data Management
                                                                                                                                        (Spectral Evaluation Function)
                     Four Measurement Modes                        Data analysis and data output operations can be performed at                                                       In addition to regular file management in folders on a PC,
                                                                   the same time (simultaneously) as data measurement. Time             By specifying various evaluation criteria for measurement   ideal solutions for saving data in a database with
                     Four separate measurement modes: spectral, quantitative,
                                                                   spent outputting or analyzing data can also be reduced by            results, spectra judgments can be made automatically.  sophisticated security functionality and compliance with
                     photometric, time-course, automatic measurement (optional)
                                                                   simultaneously sending data to an Excel  spreadsheet in real                                                       ER/ES-related regulations are also available.
                                                                                              ®
                     enable measurements to be performed using intuitive
                                                                   time or saving data as text. The software can also
                     operations.                                                                                                                                                        Optional Software
                                                                   automatically perform post-processing of measured data,
                                                                   such as processing/correcting spectra, and perform pass/fail                                                           LabSolutions DB UV-Vis
                                                                   judgments of measurement results (automatic spectral                                                                   LabSolutions CS UV-Vis
                                                                   evaluation).
                                                                                                                                                                                      Database Management
                                                                                                                                                                                      Managing data in a database can prevent the overwriting
                                                                                                                                                                                      or deletion of analysis data. Furthermore, during postrun
                                                                     Start
                                                                                                                                                                                      analysis, the data can be managed using version numbers,
                              Four Measurement Mode Windows
                                                                                                                                                                                      so there are no concerns about overwriting the data.
                                                                   measurement
                     Instrument Control Panel                                                                                                                                                     Analysis   Postrun    Postrun
                                                                                                                                                                                                                        analysis
                                                                                                                                                                                                             analysis
                                                                                                                                                                                                        Ver. 1     Ver. 2    Ver. 3
                     Instrument parameter settings can be specified via panels that
                     are separate from the measurement window. The control   Finish                                                      In the report creation window, reports can either be prepared
                     panels include various functionality that is laid out for superior   measurement                                    based on a previously specified report format or freely laid out
                     visibility. Each measurement window connects seamlessly to   Analyze data in Excel  concurrently with data measurement  based on various parameters, data, or other elements.          Reduces operator errors.
                                                                                     ®
                                                                            ®
                                                                        (Excel  data analysis real-time transfer function)
                     the corresponding parameter settings window.




                                                                                           Easily transfer data to external
                                                                                           data analysis software
                                                                                           (simultaneous text saving and
                                                                   for multiple samples
                                                                     Finish measurements
                                                                                           matrix output functions)
