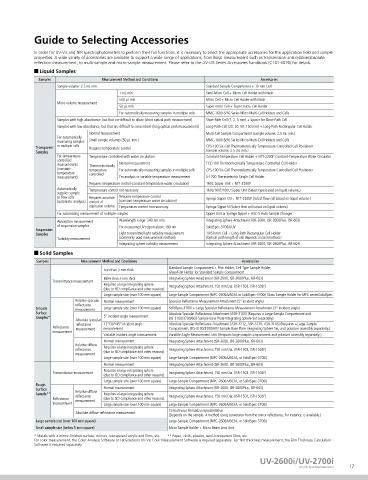

Guide to Selecting Accessories

In order for UV-Vis and NIR spectrophotometers to perform their full functions, it is necessary to select the appropriate accessories for the application eld and sample
properties. A wide variety of accessories are available to support a wide range of applications, from basic measurement such as transmission and relative/absolute
re ection measurement, to multi-sample and micro-sample measurement. Please refer to the UV-VIS Series Accessories handbook (C101-E070) for details.
Liquid Samples
Samples Measurement Method and Conditions Accessories
Sample volume: 2.5 mL min. Standard Sample Compartment + 10 mm Cell
1 mL min. Semi-Micro Cell + Micro Cell Holder with Mask
500 L min. Micro Cell + Micro Cell Holder with Mask
Micro-volume measurement
50 L min. Super-micro Cell + Super-micro Cell Holder
For automatically measuring samples in multiple cells MMC-1600 8/16 Series Micro Multi-Cell Holders and Cells
Samples with high absorbance, but that are difficult to dilute (short optical path measurement) Short-Path Cell (1, 2, 5 mm) + Spacer for Short-Path Cell
Samples with low absorbance, but that are difficult to concentrate (long optical path measurement) Long-Path Cell (20, 30, 50, 100 mm) + Long-Path Rectangular Cell Holder
Normal measurement Multi-Cell Sample Compartment (sample volume: 2.5 mL min.)
For automatically
measuring samples Small sample volumes (50 L min.) MMC-1600 8/16 Series Micro Multi-Cell Holders and Cells
Transparent in multiple cells Requires temperature control CPS-100 Six-Cell Thermoelectrically Temperature-Controlled Cell Positioner
Samples (sample volume: 2.5 mL min.)
For temperature- Temperature-controlled with water circulation Constant-Temperature Cell Holder + NTT-2200P Constant-Temperature Water Circulator
controlled
measurements Thermoelectrically Normal measurement TCC-100 Thermoelectrically Temperature-Controlled Cell Holder
(constant- temperature For automatically measuring samples in multiple cells CPS-100 Six-Cell Thermoelectrically Temperature-Controlled Cell Positioner
temperature controlled
measurement) Tm analysis or variable temperature measurement S-1700 Thermoelectric Single Cell Holder
Requires temperature control (constant-temperature water circulation) 160C Sipper Unit + NTT-2200P
Automatically Temperature control not necessary 160L/160T/160U Sipper Unit (Select type based on liquid volume.)
supplies sample
to flow cells Requires accurate Requires temperature control Syringe Sipper CN + NTT-2200P (Select flow cell based on liquid volume.)
(automatic analysis) control of (constant-temperature water circulation)
aspiration volume. Temperature control not necessary Syringe Sipper N (Select flow cell based on liquid volume)
For automating measurement of multiple samples Sipper Unit or Syringe Sipper + ASC-5 Auto Sample Changer
Absorption measurement Wavelength range: 240 nm min. Integrating Sphere Attachment (ISR-2600, ISR-2600Plus, ISR-603)
of suspension samples For measuring UV region above 190 nm SolidSpec-3700iDUV
Suspension
Samples Light transmitted light turbidity measurement 10/50 mm Cell + Long-Path Rectangular Cell Holder
Turbidity measurement (commonly used measurement method) (Optical path length of cell depends on test method.)
Integrating sphere turbidity measurement Integrating Sphere Attachment (ISR-2600, ISR-2600Plus, ISR-603)
Solid Samples
Samples Measurement Method and Conditions Accessories
Less than 3 mm thick Standard Sample Compartment + Film Holder, Cell Type Sample Holder,
Glass/Film Holder for Standard Sample Compartment
More than 3 mm thick Integrating Sphere Attachment (ISR-2600, ISR-2600Plus, ISR-603)
Transmittance measurement
Requires a large integrating sphere Integrating Sphere Attachment, 150 mm Dia. (ISR-1503, ISR-1503F)
(due to ISO compliance and other reasons).
Large sample size (over 100 mm square) Large-Sample Compartment (MPC-2600A/603A or SolidSpec-3700i) Glass Sample Holder for MPC series/SolidSpec
Relative specular Normal measurement Specular Reflectance Measurement Attachment (5° incident angle)
reflectance
Smooth measurement Large sample size (over 100 mm square) SolidSpec-3700i + Large Specular Reflectance Measurement Attachment (5° incident angle)
Surface Absolute Specular Reflectance Attachment (ASR-3105) (Requires a Large-Sample Compartment and
Samples* 5° incident angle measurement BIS-3100/3700/603 Sample Base Plate Integrating Sphere Set separately).
Absolute specular
reflectance 12°/30°/45° incident angle Absolute Specular Reflectance Attachment (ASR-3112, ASR-3130, ASR-3145) (Requires a Large-Sample
Reflectance measurement measurement Compartment, BIS-3100/3700/603 Sample Base Plate Integrating Sphere Set, and polarizer assembly separately.)
measurement
Variable incident angle measurement Variable Angle Measurement Unit (Requires large-sample compartment and polarizer assembly separately.)
Normal measurement Integrating Sphere Attachment (ISR-2600, ISR-2600Plus, ISR-603)
Relative diffuse Requires a large integrating sphere
reflectance Integrating Sphere Attachment, 150 mm Dia. (ISR-1503, ISR-1503F)
measurement (due to ISO compliance and other reasons).
Large sample size (over 100 mm square) Large-Sample Compartment (MPC-2600A/603A, or SolidSpec-3700i)
Normal measurement Integrating Sphere Attachment (ISR-2600, ISR-2600Plus, ISR-603)
Requires a large integrating sphere
Transmittance measurement Integrating Sphere Attachment, 150 mm Dia. (ISR-1503, ISR-1503F)
(due to ISO compliance and other reasons).
Large sample size (over 100 mm square) Large-Sample Compartment (MPC-2600A/603A, or SolidSpec-3700i)
Rough
Surface Normal measurement Integrating Sphere Attachment (ISR-2600, ISR-2600Plus, ISR-603)
Sample** Relative diffuse Requires a large integrating sphere Integrating Sphere Attachment, 150 mm Dia. (ISR-1503, ISR-1503F)
reflectance
Reflectance measurement (due to ISO compliance and other reasons).
measurement Large sample size (over 100 mm square) Large-Sample Compartment (MPC-2600A/603A, or SolidSpec-3700i)
Consult your Shimadzu representative.
Absolute diffuse reflectance measurement (Depends on the sample. A method using conversion from the mirror reflectance, for instance, is available.)
Large sample size (over 100 mm square) Large-Sample Compartment (MPC-2600A/603A, or SolidSpec-3700i)
Small sample size (below 5 mm square) Micro Sample Holder + Micro Beam Lens Unit
* Metals with a mirror- nished surface, mirrors, transparent acrylic and lms, etc. ** Paper, cloth, plastics, semi-transparent lms, etc.
For color measurement, the Color Analysis Software or LabSolutions UV-Vis Color Measurement Software is required separately. For lm thickness measurement, the Film Thickness Calculation
Software is required separately.
UV-2600i/UV-2700i
UV-VIS Spectrophotometer 17
