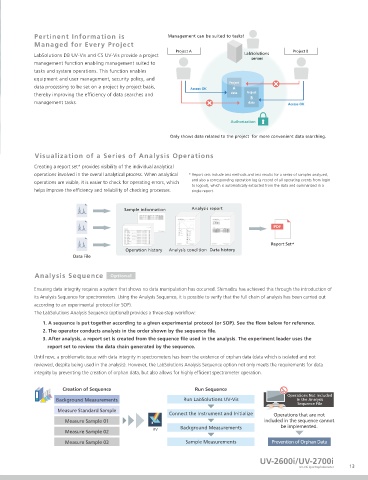

Page 13 - Shimadzu UV-2600-2007i

Pertinent Information is Management can be suited to tasks!
Managed for Every Project
Project A Project B
LabSolutions DB UV-Vis and CS UV-Vis provide a project LabSolutions
server
management function enabling management suited to
tasks and system operations. This function enables
equipment and user management, security policy, and
Project
data processing to be set on a project by project basis, Access OK A
thereby improving the ef ciency of data searches and data Project
B
management tasks. data Access OK

Authorization

Only shows data related to the project for more convenient data searching.

Visualization of a Series of Analysis Operations

Creating a report set* provides visibility of the individual analytical
operations involved in the overall analytical process. When analytical * Report sets include test methods and test results for a series of samples analyzed,
operations are visible, it is easier to check for operating errors, which and also a corresponding operation log (a record of all operating events from login
to logout), which is automatically extracted from the data and summarized in a
helps improve the ef ciency and reliability of checking processes. single report.

Sample information Analysis report

Report Set*
Operation history Analysis condition Data history
Data File

Analysis Sequence Optional

Ensuring data integrity requires a system that shows no data manipulation has occurred. Shimadzu has achieved this through the introduction of
its Analysis Sequence for spectrometers. Using the Analysis Sequence, it is possible to verify that the full chain of analysis has been carried out
according to an experimental protocol (or SOP).
The LabSolutions Analysis Sequence (optional) provides a three-step work ow:
1. A sequence is put together according to a given experimental protocol (or SOP). See the ow below for reference.
2. The operator conducts analysis in the order shown by the sequence le.
3. After analysis, a report set is created from the sequence le used in the analysis. The experiment leader uses the
report set to review the data chain generated by the sequence.
Until now, a problematic issue with data integrity in spectrometers has been the existence of orphan data (data which is isolated and not
reviewed, despite being used in the analysis). However, the LabSolutions Analysis Sequence option not only meets the requirements for data
integrity by preventing the creation of orphan data, but also allows for highly ef cient spectrometer operation.

Creation of Sequence Run Sequence
Operations Not Included
Background Measurements Run LabSolutions UV-Vis in the Analysis
Sequence File
Measure Standard Sample
Connect the Instrument and Initialize Operations that are not
Measure Sample 01 included in the sequence cannot
be implemented.
Measure Sample 02 UV Background Measurements
Measure Sample 03 Sample Measurements Prevention of Orphan Data

UV-2600i/UV-2700i
UV-VIS Spectrophotometer 13
