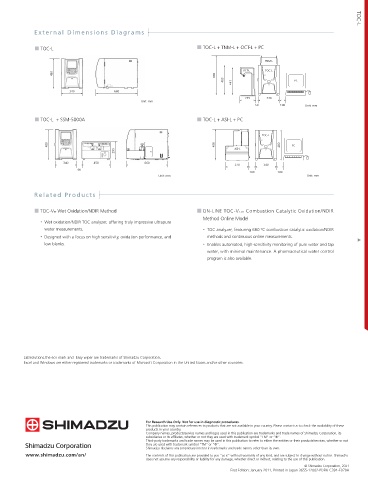

Page 16 - Shimadzu TOC-L

External Dimensions Diagrams TOC-L

˙ TOC-L ˙ TOC-L + TNM-L + OCT-L + PC
TNM-L
OCT-L TOC-L
480 630
480 441 PC
340 660
245 340
Unit: mm
50 100 Unit: mm
˙ TOC-L + SSM-5000A ˙ TOC-L + ASI-L + PC

TOC-L
480 496 480 PC
290 ASI-L
340 450 660
370 340
90
100 100
Unit: mm Unit: mm

Related Products

˙ TOC-VW Wet Oxidation/NDIR Method ˙ ON-LINE TOC-VCSH Combustion Catalytic Oxidation/NDIR
Method Online Model
ɾ Wet oxidation/NDIR TOC analyzer, offering truly impressive ultrapure
water measurements. ɾ TOC analyzer, featuring 680 ºC combustion catalytic oxidation/NDIR
ɾ Designed with a focus on high sensitivity, oxidation performance, and methods and continuous online measurements.
low blanks. ɾ Enables automated, high-sensitivity monitoring of pure water and tap
water, with minimal maintenance. A pharmaceutical water control
program is also available.
