Optional Open Access Software

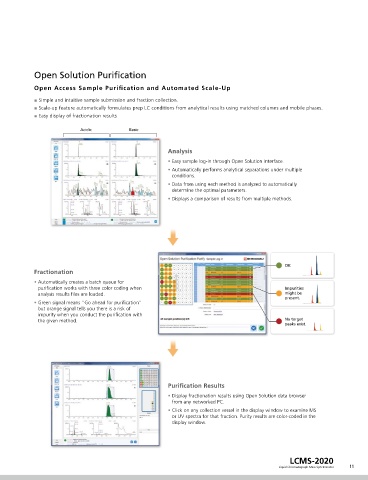

 Open Solution Analytical  Open Solution Purification


 Simple and Intuitive Sample Logging and Data Review  Open Access Sample Purification and Automated Scale-Up
 ■ After logging in to the [Sample Log-in] window, simply select methods and samples to start analysis.  ■ Simple and intuitive sample submission and fraction collection.
 ■ Open-access functionality for sharing instruments among multiple users.  ■ Scale-up feature automatically formulates prep LC conditions from analytical results using matched columns and mobile phases.
 ■ Performs automated method switching for multiple users, including column and mobile phase switching, and automatic rinsing of   ■ Easy display of fractionation results
 flow lines.
 ■ Visually displays sample analysis status.  Acidic  Basic

 Select user and log in.  Select methods and samples.
                                                         Analysis

                                                         • Easy sample log-in through Open Solution interface.
                                                         • Automatically performs analytical separations under multiple
                                                          conditions.
                                                         • Data from using each method is analyzed to automatically
                                                          determine the optimal parameters.
                                                         • Displays a comparison of results from multiple methods.











 Displays analysis   Displays color-coded status   Simply click this button
 time for sample queue.  of sample analysis.  to start analysis.                               OK
            Fractionation
            • Automatically creates a batch queue for
 Data Browser—Display and Analyze Data  purification works with three color coding when         Impurities
              analysis results files are loaded.                                                might be
                                                                                               present.
 ■ Quickly display data by simply clicking on samples in the rack diagram.  • Green signal means "Go ahead for purification"
              but orange signal tells you there is a risk of
 ■ The data browser can be launched on any networked computer by simply installing software on that computer.
              impurity when you conduct the purification with
 ■ Peak integration (adding or deleting peaks) for LC chromatograms can be performed easily.  the given method.  No target
 ■ Displays MS and UV spectra for user-specified times.                                         peaks exist.
 ■ Calculates and displays peak purity based on similarity score of MS spectrum.




 Clicking on a peak displays
 the MS and UV spectra
 for that peak.
 Clicking on a sample displays the                       Purification Results
 Simple menu configuration  corresponding data.
 Samples are color-coded based on                        • Display fractionation results using Open Solution data browser
 area percentage of target peak.
                                                          from any networked PC.
                                                         • Click on any collection vessel in the display window to examine MS
 Displays MS chromatogram
 for specified target mass.                                or UV spectra for that fraction. Purity results are color-coded in the
                                                          display window.
 Displays MS and UV spectra
 for user-specified times.



                                                                                                 LCMS-2020
