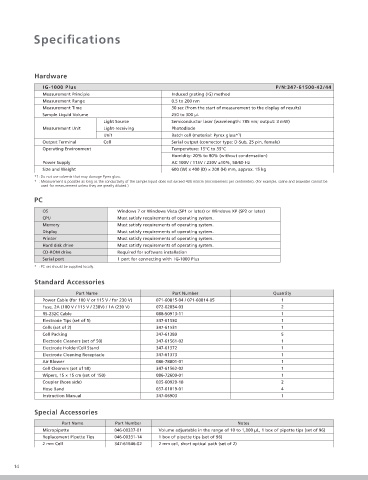

Specifications

Hardware Parts Required for Installation
IG-1000 Plus P/N:347-61500-42/44 Parts Purchased from Shimadzu
Measurement Principle Induced grating (IG) method Part Name Part Number Notes
Measurement Range 0.5 to 200 nm Reference Sample Set 347-61015-02 Reference samples (particle size: 50 nm), 2 vials
Measurement Time 30 sec (from the start of measurement to the display of results) WingIG 347-64470 Specialized IG-1000 Plus software
Sample Liquid Volume 250 to 300 µL
Light Source Semiconductor laser (wavelength: 785 nm; output: 3 mW)
Parts Provided by the Customer
Measurement Unit Light-receiving Photodiode
Unit Batch cell (material: Pyrex glass* 1 ) Name Specifications
Output Terminal Cell Serial output (connector type: D-Sub, 25 pin, female) Micropipette* Required to inject samples into the cell. Provide a micropipette that can measure out 200 µL with
an accuracy of 5%.
Operating Environment Temperature: 15°C to 35°C
* Sold by Shimadzu as a special accessory and can therefore be ordered from Shimadzu if necessary.
Humidity: 20% to 80% (without condensation)
Power Supply AC 100V / 115V / 230V ±10%, 50/60 Hz
Size and Weight 600 (W) x 400 (D) × 200 (H) mm, approx. 15 kg
*1: Do not use solvents that may damage Pyrex glass.
* : Measurement is possible as long as the conductivity of the sample liquid does not exceed 400 mS/cm (microsiemens per centimeter). (For example, saline and seawater cannot be
used for measurement unless they are greatly diluted.)
PC

OS Windows 7 or Windows Vista (SP1 or later) or Windows XP (SP2 or later) Dimensions (mm)
CPU Must satisfy requirements of operating system.
Memory Must satisfy requirements of operating system.
Display Must satisfy requirements of operating system.
Printer Must satisfy requirements of operating system.
Hard disk drive Must satisfy requirements of operating system.
CD-ROM drive Required for software installation
Serial port 1 port for connecting with IG-1000 Plus
200
* : PC set should be supplied locally.

Standard Accessories
Part Name Part Number Quantity
Power Cable (for 100 V or 115 V / for 230 V) 071-60815-04 / 071-60814-05 1
Fuse, 2A (100 V / 115 V / 230V) / 1A (230 V) 072-02034-03 2
400
RS-232C Cable 088-50913-11 1 600
Electrode Tips (set of 5) 347-61530 1
Cells (set of 2) 347-61531 1
Cell Packing 347-61389 5
Electrode Cleaners (set of 50) 347-61561-02 1
Electrode Holder/Cell Stand 347-61372 1
Electrode Cleaning Receptacle 347-61373 1
Air Blower 086-78801-01 1
Cell Cleaners (set of 50) 347-61562-02 1
Wipers, 15 × 15 cm (set of 150) 086-72609-01 1
Coupler (hose side) 035-60929-18 2
Hose Band 037-61019-01 4
Instruction Manual 347-06903 1

Special Accessories

Part Name Part Number Notes
Micropipette 046-00337-01 Volume adjustable in the range of 10 to 1,000 µL, 1 box of pipette tips (set of 96)
Replacement Pipette Tips 046-00331-14 1 box of pipette tips (set of 96)
2 mm Cell 347-61646-02 2 mm cell, short optical path (set of 2)

IG-1000 Plus
14 Single Nano Particle Size Analyzer 15
