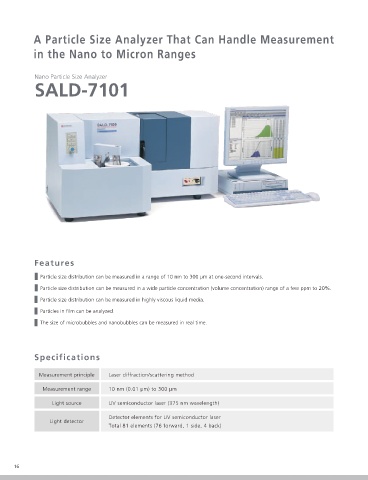

A Particle Size Analyzer That Can Handle Measurement

in the Nano to Micron Ranges

Nano Particle Size Analyzer Microbubble and Nanobubble Size Measurement Using the SALD-7101
SALD-7101 The size of nanobubbles and microbubbles can be measured in one range.

Its real-time measurement capability enables the instrument to be used as a monitor.

Water discharge Pump

Forward-scattered light sensor

Back-scattered/
side-scattered light sensor Flow cell PC

Features Real-time measurements can be used to

configure a bubble-size control system.
Particle size distribution can be measured in a range of 10 nm to 300 µm at one-second intervals. Bubble generator
Particle size distribution can be measured in a wide particle concentration (volume concentration) range of a few ppm to 20%.
Water injection
Particle size distribution can be measured in highly viscous liquid media.

Particles in film can be analyzed.
The size of microbubbles and nanobubbles can be measured in real time.
Nomalized Particle Amount Nomalized Particle Amount

Specifications

Particle Diameter (µm) Particle Diameter (µm)
Measurement principle Laser diffraction/scattering method
(a) Nano-Bubble (b) Micro Bubble
Measurement range 10 nm (0.01 µm) to 300 µm
Measurememt of Micro Bubble and Nano-Bubble
Light source UV semiconductor laser (375 nm wavelength)

Detector elements for UV semiconductor laser These results were obtained with the bubble generator and flow cell connected.
Light detector Using the SALD-7101, the flow cell and bubble generator are directly connected, as shown in the diagram. This allows online,
Total 81 elements (76 forward, 1 side, 4 back)
real-time diameter measurements of the microbubbles and nanobubbles formed, which permits feedback of the bubble diameters.

IG-1000 Plus
