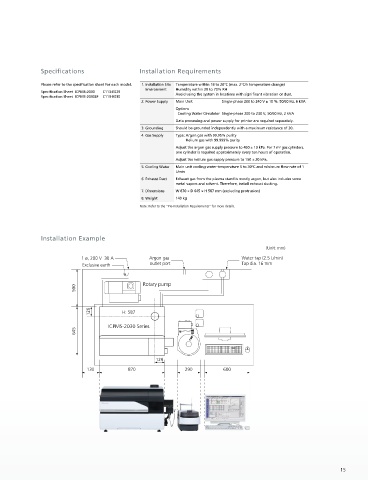

Page 15 - Shimadzu ICPMS-2030 Series

Specifications Installation Requirements

Please refer to the specification sheet for each model. 1. Installation Site Temperature within 18 to 28°C (max. 2°C/h temperature change)
Environment Humidity within 20 to 70% RH
Specification Sheet ICPMS-2030 C113-E029 Avoid using the system in locations with significant vibration or dust.
Specification Sheet ICPMS-2030LF C113-E030
2. Power Supply Main Unit Single-phase 200 to 240 V ± 10 %, 50/60 Hz, 6 kVA
Options
Cooling Water Circulator Single-phase 200 to 230 V, 50/60 Hz, 2 kVA
Data processing and power supply for printer are required separately.
3. Grounding Should be grounded independently with a maximum resistance of 30.
4. Gas Supply Type: Argon gas with 99.95% purity
Helium gas with 99.999% purity
Adjust the argon gas supply pressure to 450 ± 10 kPa. For 7 m 3 gas cylinders,
one cylinder is required approximately every ten hours of operation.
Adjust the helium gas supply pressure to 150 ± 20 kPa.
5. Cooling Water Main unit cooling water temperature 5 to 30°C and minimum flow rate of 1
L/min
6. Exhaust Duct Exhaust gas from the plasma stand is mostly argon, but also includes some
metal vapors and solvent. Therefore, install exhaust ducting.
7. Dimensions W 870 × D 645 × H 587 mm (excluding protrusion)
8. Weight 140 kg
Note: Refer to the “Pre-Installation Requirements” for more details.

Installation Example

(Unit: mm)
1 ø, 200 V 30 A Argon gas Water tap (2.5 L/min)
Exclusive earth outlet port Tap dia. 16 mm

Rotary pump
500

126 H: 587

ICPMS-2030 Series
645

129
130 870 290 600

15
