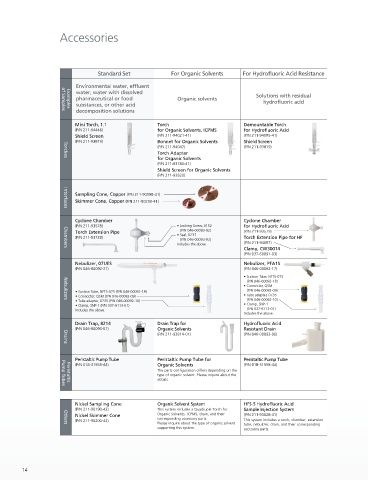

Page 14 - Shimadzu ICPMS-2030 Series

Accessories

Standard Set For Organic Solvents For Hydrofluoric Acid Resistance

Environmental water, effluent
water, water with dissolved Solutions with residual
pharmaceutical or food Organic solvents hydrofluoric acid
substances, or other acid
decomposition solutions
Examples
of Samples
Mini Torch, 1.1 Torch Demountable Torch
(P/N 211-94446) for Organic Solvents, ICPMS for Hydrofluoric Acid
Shield Screen (P/N 211-94021-41) (P/N 211-94095-41)
(P/N 211-93819) Bonnet for Organic Solvents Shield Screen
(P/N 211-94047) (P/N 211-93819)
Torch Adapter
for Organic Solvents
Torches
(P/N 211-93780-41)
Shield Screen for Organic Solvents
(P/N 211-93820)

Sampling Cone, Copper (P/N 211-90190-41)
Skimmer Cone, Copper (P/N 211-90200-41)
Interfaces
Cyclone Chamber Cyclone Chamber
(P/N 211-93578) • Locking Screw, 0152 for Hydrofluoric Acid
(P/N 046-00093-92)
Torch Extension Pipe • Seal, 0237 (P/N 211-93579)
(P/N 211-93728) Torch Extension Pipe for HF
(P/N 046-00093-93)
Includes the above. (P/N 211-94097)
Clamp, CW30014
Chambers
(P/N 037-60091-03)
Nebulizer, 07UES Nebulizer, PFA1S
(P/N 046-00092-21) (P/N 046-00092-17)
• Suction Tube, NFTS-075
(P/N 046-00092-18)
• Connector, QSM
• Suction Tube, NFTS-075 (P/N 046-00092-18) (P/N 046-00092-09)
• Connector, QSM (P/N 046-00092-09) • Tube adapter, 0735
• Tube adapter, 0735 (P/N 046-00092-10) (P/N 046-00092-10)
Nebulizers
• Clamp, SNP-1 (P/N 037-6113-01) • Clamp, SNP-1
Includes the above. (P/N 037-6113-01)
Includes the above.
Drain Trap, 8214 Drain Trap for Hydrofluoric Acid
(P/N 046-00093-01) Organic Solvents Resistant Drain
(P/N 211-93814-01) (P/N 046-00093-06)
Drains

Peristaltic Pump Tube Peristaltic Pump Tube for Peristaltic Pump Tube
(P/N 018-31558-44) Organic Solvents (P/N 018-31558-44)
The parts configuration differs depending on the
type of organic solvent. Please inquire about the
details.
Peristaltic
Pump Tubes

Nickel Sampling Cone Organic Solvent System HFS-5 Hydrofluoric Acid
(P/N 211-90190-42) This system includes a Quadruple Torch for Sample Injection System
Nickel Skimmer Cone Organic Solvents, ICPMS, drain, and their (P/N 211-93828-41)
(P/N 211-90200-42) corresponding accessory parts. This system includes a torch, chamber, extension
Please inquire about the type of organic solvent tube, nebulizer, drain, and their corresponding
Others
supporting this system. accessory parts.

14
