Page 6 - Shimadzu GC-2025

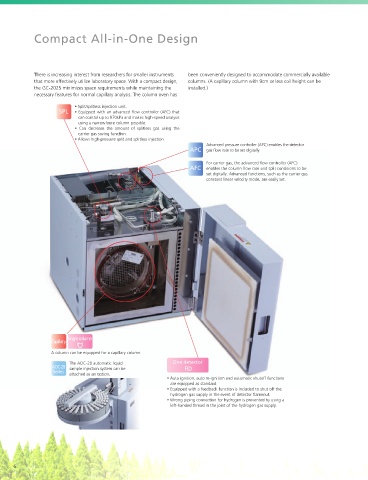

Compact All-in-One Design

There is increasing interest from researchers for smaller instruments been conveniently designed to accommodate commercially available Space-saving Design Enables Easy Installation Anywhere
that more effectively utilize laboratory space. With a compact design, columns. (A capillary column with 9cm or less coil height can be
the GC-2025 minimizes space requirements while maintaining the installed.)
necessary features for normal capillary analysis. The column oven has
Width 40cm
ŋ Split/splitless injection unit.
SPL ŋ Equipped with an advanced flow controller (AFC) that
can control up to 970kPa and makes high-speed analysis
using a narrow bore column possible. Size comparison with Shimadzu previous model
ŋ Can decrease the amount of splitless gas using the
carrier gas saving function. Width 51.5cm Width 40cm
ŋ Allows high-pressure split and splitless injection.
Advanced pressure controller (APC) enables the detector
APC gas flow rate to be set digitally. Height 69cm

For carrier gas, the advanced flow controller (AFC)
AFC enables the column flow rate and split conditions to be
set digitally. Advanced functions, such as the carrier gas Height 44cm Height 42cm
constant linear velocity mode, are easily set.

GC-2010 Plus GC-2025 GC-2014

GC upper surface GC-2014
GC-2010 Plus

Width 53cm of GC-2010 Plus GC-2025 Width 49cm of GC-2025 Width 60.7cm of GC-2014

Single column
Capillary
A column can be equipped for a capillary column.
The AOC-20 automatic liquid One detector
AOC-20 sample injection system can be FID
Series
attached as an option.
ŋ Auto ignition, auto re-ignition and automatic shutoff functions
are equipped as standard.
ŋ Equipped with a feedback function is included to shut off the
hydrogen gas supply in the event of detector flameout.
ŋ Wrong piping connection for hydrogen is prevented by using a
left-handed thread in the joint of the hydrogen gas supply.

GC-2025
6 Energy Saving Capillary Gas Chromatograph 7
