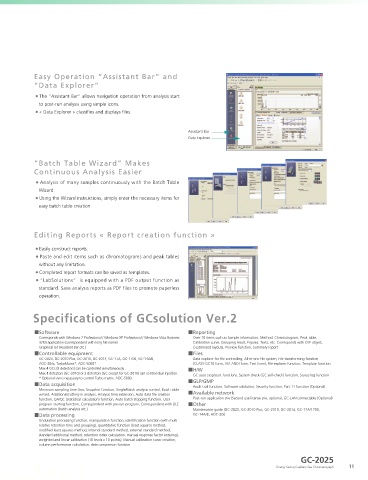

Page 11 - Shimadzu GC-2025

Shimadzu Gas Chromatography Workstation

GCsolution Ver.2 (Windows7)

GCsolution workstation software improves productivity, reliability, Easy Operation “Assistant Bar” and
and operability with the "Assistant Bar" and "Data Explorer"
functions. Moreover, the high-level operating environment “Data Explorer”
supports GLP/GMP compliance for pharmaceutical and environ- • The “Assistant Bar” allows navigation operation from analysis start
ment applications.
to post-run analysis using simple icons.
• « Data Explorer » classifies and displays files.
Easy Operation for Improved Productivity Supports GLP/GMP
˔ Common operation system in LabSolutions series has ˔ For improved data reliability, GCsolution supports
Assistant Bar
been adopted, for more intuitive operation and a GLP/GMP with its user-management, self-diagnosis, Data Explorer
shorter learning curve. and audit trail functions
˔ The software features an enhanced manipulation ˔ An optional function for supporting Part11 is available.
function for improved operability and functionality.
“Batch Table Wizard” Makes
Network Support Continuous Analysis Easier
Enhanced Basic Functions ˔ A network environment for remote access and data • Analysis of many samples continuously with the Batch Table
˔ Control and data processing function enable use of up analysis can be effectively implemented. Wizard.
to 4 GC systems. ˔ Sharing various files and the uniform management of • Using the Wizard instructions, simply enter the necessary items for
Corresponding models: GC-2025, GC-2010 Plus, data are possible using "CLASS-Agent".
GC-2010, GC-2014, GC-17A, GC-1700, and GC-14A/B easy batch table creation.
˔ The data processing functions in Chromatopac and
CLASS-GC10 have been implemented. Customizing
˔ The identification, quantitation and data comparison ˔ An easier custom-designed operating environment using
functions have been enhanced. the OLE automation function can be constructed. Editing Reports « Report creation function »
˔ The data station offers flexible report options and the
• Easily construct reports.
summary report can be output. OS
˔ An Windows 7 Professional / Windows XP Professional / • Paste and edit items such as chromatograms and peak tables
without any limitation.
Windows Vista Business
• Completed report formats can be saved as templates.
• “LabSolutions” is equipped with a PDF output function as
standard. Save analysis reports as PDF files to promote paperless
operation.

Specifications of GCsolution Ver.2

˙Software ˙Reporting
Corresponds with Windows 7 Professional / Windows XP Professional / Windows Vista Business Over 10 items such as Sample information, Method, Chromatogram, Peak table,
32Bit application (correspondent with long file name) Calibration curve, Grouping result, Figures, Texts, etc. Corresponds with OLE object,
Graphical U/I (Assistant Bar etc.) Customized layouts, Preview function, Summary report.
˙Controllable equipment ˙Files
GC-2025, GC-2010 Plus, GC-2010, GC-2014, GC-17A, GC-1700, GC-14A/B, Data explorer for file controlling, All-in-one file system, File transforming function
AOC-20i/s, TurboMatrix*, AOC-5000*. (CLASS-GC10 form, AIA ANDI form, Text form), File explorer function, Template function
Max 4 GCs (9 detectors) can be controlled simultaneously . ˙H/W
Max 4 detectors (GC-2010) or 2 detectors (GC except for GC-2010) can control dual injection. GC auto stop/start functions, System check (GC self-check) function, Status log function
* Optional s/w is necessary to control Turbo matrix, AOC-5000.
˙Data acquisition ˙GLP/GMP
Audit trail function, Software validation, Security function, Part 11 function (Optional)
Minimum sampling time 4ms, Snapshot function, Single/Batch analysis control, Batch table
wizard, Additional/cutting-in analysis, Analysis time extension, Auto data file creation ˙Available network
function, QA/QC (statistical calculation) function, Auto batch stopping function, User Post-run application s/w (Second use license s/w, optional, GC-LAN connectable (Optional)
program starting function, Correspondent with pre-run program, Correspondent with OLE ˙Other
automation (batch analysis etc.) Maintenance guide (GC-2025, GC-2010 Plus, GC-2010, GC-2014, GC-17A/1700,
˙Data processing GC-14A/B, AOC-20i)
Undulation processing function, manipulation function, identification function (with multi
relative retention time and grouping), quantitative function (least squares method,
modified least squares method, internal standard method, external standard method,
standard additional method, retention index calculation, manual response factor entering),
weighted and linear calibration (16 levels x 10 points), Manual calibration curve creation,
column performance calculation, data comparison function
