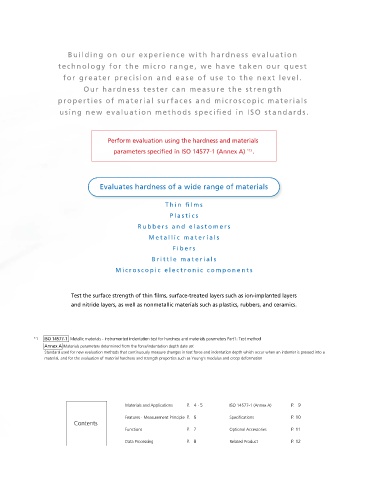

System for Evaluating Thin Films, Surface-Treated Layers, Building on our experience with hardness evaluation
and Microelectronic Parts technology for the micro range, we have taken our quest
Dynamic Ultra Micro Hardness Testers for greater precision and ease of use to the next level.
DUH-211/211S Our hardness tester can measure the strength

properties of material surfaces and microscopic materials
using new evaluation methods speciﬁed in ISO standards.

Perform evaluation using the hardness and materials
parameters speciﬁed in ISO 14577-1 (Annex A) .
*1)

Evaluates hardness of a wide range of materials

Thin ﬁlms
Plastics
Rubbers and elastomers
Metallic materials

Fibers
Brittle materials
Microscopic electronic components

Test the surface strength of thin ﬁlms, surface-treated layers such as ion-implanted layers
and nitride layers, as well as nonmetallic materials such as plastics, rubbers, and ceramics.

*1 ISO 14577-1 Metallic materials - Instrumented indentation test for hardness and materials parameters Part1: Test method
Annex A Materials parameters determined from the force/indentation depth date set
Standard used for new evaluation methods that continuously measure changes in test force and indentation depth which occur when an indenter is pressed into a
material, and for the evaluation of material hardness and strength properties such as Young's modulus and creep deformation

Materials and Applications P. 4 · 5 ISO 14577-1 (Annex A) P. 9

Features · Measurement Principle P. 6 Speciﬁcations P. 10
Contents
Functions P. 7 Optional Accessories P. 11

Data Processing P. 8 Related Product P. 12
