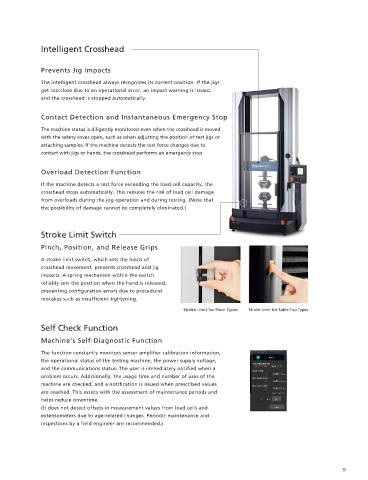

Page 9 - Shimadzu AGX-V2 Series

02 True Safety for both

the Operator and the Machine Intelligent Crosshead

Prevents Jig Impacts
The intelligent crosshead always recognizes its current position. If the jigs
get too close due to an operational error, an impact warning is issued,
and the crosshead is stopped automatically.

Contact Detection and Instantaneous Emergency Stop

The machine status is diligently monitored even when the crosshead is moved
with the safety cover open, such as when adjusting the position of test jigs or
attaching samples. If the machine detects the test force changes due to
contact with jigs or hands, the crosshead performs an emergency stop.

Overload Detection Function

If the machine detects a test force exceeding the load cell capacity, the
crosshead stops automatically. This reduces the risk of load cell damage
from overloads during the jog operation and during testing. (Note that
the possibility of damage cannot be completely eliminated.)

Stroke Limit Switch
Pinch, Position, and Release Grips

A stroke limit switch, which sets the limits of
crosshead movement, prevents crosshead and jig
impacts. A spring mechanism within the switch
reliably sets the position when the hand is released,
preventing configuration errors due to procedural
mistakes such as insufficient tightening.

Stroke Limit for Floor Types Stroke Limit for Table-Top Types

Self Check Function
Safety Cover Machine’s Self-Diagnostic Function

The function constantly monitors sensor amplifier calibration information,
Protects Operators from Debris the operational status of the testing machine, the power supply voltage,
and the communications status. The user is immediately notified when a
Highly transparent, impact-resistant polycarbonate safety covers problem occurs. Additionally, the usage time and number of uses of the
are provided as standard for the front and rear of the test machine are checked, and a notification is issued when prescribed values
space. This prevents samples from flying out when they break. are reached. This assists with the assessment of maintenance periods and
An interlock function is provided, so that if the safety cover is helps reduce downtime.
not closed, testing and the return operation are prevented, (It does not detect offsets in measurement values from load cells and
reducing the risk of accidents. extensometers due to age-related changes. Periodic maintenance and
• Using optional accessories, all movement including the jog inspections by a field engineer are recommended.)
operation can be prohibited.

8 9
