03 Operability that Takes Choose between Two Controllers

A universal interface standardized with the software has been adopted to support all kinds of testing.
the Shortest Path to Results

Selection of operational sound Voice alerts
according to environment
A voice message warns the operator before the
The special AUTOGRAPH operational sounds are crosshead moves, preventing mistakes by the
adjustable. Select from a pleasant sound quality operator. (The sound can also be turned OFF.)
enhancing operational comfort or a sound that is easy
to hear even in noisy conditions. (The sound can also be
turned OFF.)

Operation Controller

This is equipped with a large color touch-panel LCD that
displays not only measurement values but also graphs in
real time. Buttons are included for direct operation of
test starts and stops, returns, and emergency stops, so
operations are quick and straightforward.

Stand-Alone Testing Function

Testing can be performed with the operation
controller only, without using a computer.
▶ Tensile, compression, and bending test conditions
can be configured directly from the touch panel.
▶ The measurement results are saved on a USB flash

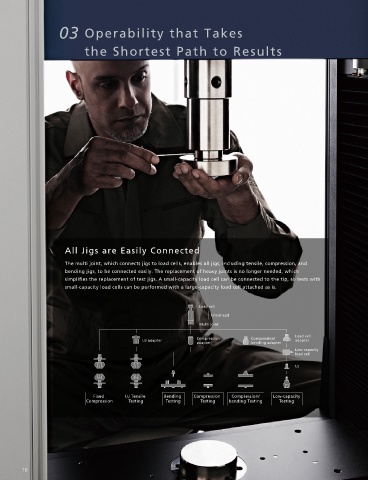

All Jigs are Easily Connected drive. (Prepare the USB flash drive separately.)

The multi joint, which connects jigs to load cells, enables all jigs, including tensile, compression, and Screen Capture
bending jigs, to be connected easily. The replacement of heavy joints is no longer needed, which Graphs displayed on the touch panel screen are saved as
image files.
simplifies the replacement of test jigs. A small-capacity load cell can be connected to the tip, so tests with
small-capacity load cells can be performed with a large-capacity load cell attached as is. Real-Time Data Sampling
Real-time data for the stroke, test force (stress), and 1
channel of the installed sensor is saved. (100 Hz data
Load cell
sampling for up to 30 minutes.)
Crosshead
Multi joint
Smart Controller
Load cell
UJ adapter Compression Compression/ adapter
adapter bending adapter
The controller is equipped with a touch-panel LCD,
Low-capacity
load cell which displays the optimal buttons and information for
the situation. It shows a variety of operations and
UJ
informational displays, including jig space adjustments
prior to testing and confirmation of measurement
values during tests.
Fixed UJ Tensile Bending Compression Compression/ Low-capacity
Compression Testing Testing Testing bending Testing Testing Finish Settings and Operations
with a Hand-Held Controller
It can be removed from the testing machine body and
operated near the jig or PC. Ideal for fine-tuning the
distance between jigs and for linking with PC software.
