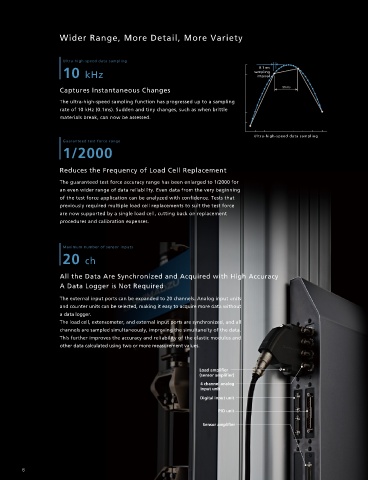

Wider Range, More Detail, More Variety

Ultra-high-speed data sampling Testing Machine Main Unit
0.1 ms
10 kHz sampling Load Frame
interval
Captures Instantaneous Changes 50 ms Frame Design Provides High Rigidity
The ultra-high-speed sampling function has progressed up to a sampling and High-Level Alignment
rate of 10 kHz (0.1ms). Sudden and tiny changes, such as when brittle
The newly designed guide column* is equipped
1
materials break, can now be assessed.
1
with a support ring* that maintains a right angle
with the table surface. As a result, measurement
Ultra-high-speed data sampling repeatability has been improved in tests of highly
Guaranteed test force range rigid materials and highly brittle materials, prone to
1/2000 the impact of frame rigidity or alignment, enabling
stable testing.
Reduces the Frequency of Load Cell Replacement

The guaranteed test force accuracy range has been enlarged to 1/2000 for
an even wider range of data reliability. Even data from the very beginning
of the test force application can be analyzed with confidence. Tests that
previously required multiple load cell replacements to suit the test force
are now supported by a single load cell, cutting back on replacement
procedures and calibration expenses.

Maximum number of sensor inputs
20 ch

All the Data Are Synchronized and Acquired with High Accuracy
A Data Logger is Not Required

The external input ports can be expanded to 20 channels. Analog input units
Voice Operation Device
and counter units can be selected, making it easy to acquire more data without
a data logger. XV-Talk ™
The load cell, extensometer, and external input ports are synchronized, and all
channels are sampled simultaneously, improving the simultaneity of the data. New Operability with Voice
This further improves the accuracy and reliability of the elastic modulus and
other data calculated using two or more measurement values. The AGX-V2 responds to the operator’s voice.
The AGX-V2 operates in response to key phrases spoken
by the operator. This frees the operator from frequently
2
Load amplifier used buttons, such as “Start Test” and “Return.”* * 3
(sensor amplifier)
4 channel analog
input unit
Digital input unit
PIO unit

Sensor amplifier

*1 Available floor models range from 20 kN to 300 kN.
*2 Use the voice operation function when the noise is 55 dB(A) or less. Voice operations may not work when the background noise is high.
*3 Without a safety cover, some voice control functions are limited.
