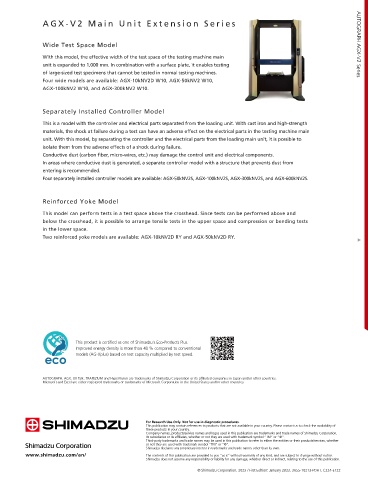

               AGX-V2 Main Unit Extension Series


               Wide Test Space Model                                                                                   AUTOGRAPH AGX-V2 Series

               With this model, the effective width of the test space of the testing machine main
               unit is expanded to 1,000 mm. In combination with a surface plate, it enables testing
               of large-sized test specimens that cannot be tested in normal testing machines.
               Four wide models are available: AGX-10kNV2D W10, AGX-50kNV2 W10,                                                          Precision Universal Testing Machines
               AGX-100kNV2 W10, and AGX-300kNV2 W10.
                                                                                                                                         AUTOGRAPH AGX-V2 Series

               Separately Installed Controller Model

               This is a model with the controller and electrical parts separated from the loading unit. With cast iron and high-strength
               materials, the shock at failure during a test can have an adverse effect on the electrical parts in the testing machine main
               unit. With this model, by separating the controller and the electrical parts from the loading main unit, it is possible to
               isolate them from the adverse effects of a shock during failure.
               Conductive dust (carbon fiber, micro-wires, etc.) may damage the control unit and electrical components.
               In areas where conductive dust is generated, a separate controller model with a structure that prevents dust from
               entering is recommended.
               Four separately installed controller models are available: AGX-50kNV2S, AGX-100kNV2S, AGX-300kNV2S, and AGX-600kNV2S.



               Reinforced Yoke Model

               This model can perform tests in a test space above the crosshead. Since tests can be performed above and
               below the crosshead, it is possible to arrange tensile tests in the upper space and compression or bending tests
               in the lower space.
               Two reinforced yoke models are available: AGX-10kNV2D RY and AGX-50kNV2D RY.




















                          This product is certified as one of Shimadzu's Eco-Products Plus.
                          Improved energy density is more than 40 % compared to conventional
                          models (AG-Xplus) based on test capacity multiplied by test speed.
