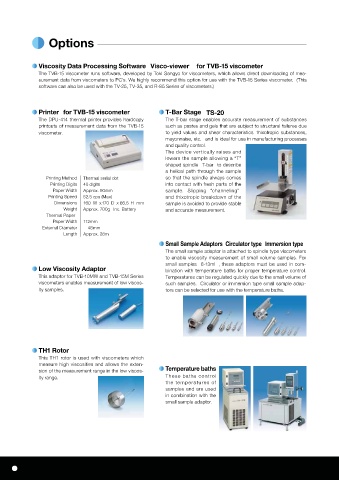

Options

Viscosity Data Processing Software ʦVisco-viewerʧ ʢfor TVB-15 viscometerʣ
The TVB-15 viscometer runs software, developed by Toki Sangyo for viscometers, which allows direct downloading of mea-
surement data from viscometers to PC’s. We highly recommend this option for use with the TVB-15 Series viscometer. (This
software can also be used with the TV-25, TV-35, and R-85 Series of viscometers.)

Printer ʢfor TVB-15 viscometerʣ T-Bar Stage ʦTS-20ʧ
The DPU-414 thermal printer provides hardcopy The T-bar stage enables accurate measurement of substances
printouts of measurement data from the TVB-15 such as pastes and gels that are subject to structural failures due
viscometer. to yield values and shear characteristics ʢthixotropic substances,
mayonnaise, etc.ʣ and is ideal for use in manufacturing processes
and quality control.
The device vertically raises and
lowers the sample allowing a “T”
shaped spindle ʢT-barʣto describe
a helical path through the sample
Printing Method ɹThermal serial dot so that the spindle always comes
Printing Digits ɹ40 digits into contact with fresh parts of the
Paper Width ɹApprox. 90mm sample. Slipping ʢ“channeling”ʣ
Printing Speed ɹ52.5 cps (Max) and thixotropic breakdown of the
Dimensions ɹ160ʢWʣ x 170ʢDʣ x 66.5ʢHʣmm sample is avoided to provide stable
Weight ɹApprox. 700g ʢInc. Batteryʣ and accurate measurement.
ʢThermal Paperʣ

Paper Width ɹ112mm
External Diameter ɹП48mm
Length ɹApprox. 28m
Small Sample Adaptors ʢCirculator typeɾImmersion typeʣ
The small sample adaptor is attached to spindle type viscometers
to enable viscosity measurement of small volume samples. For
small samples ʢ8-13mlʣ, these adaptors must be used in com-
Low Viscosity Adaptor bination with temperature baths for proper temperature control.
This adaptor for TVB-10MW and TVB-15M Series Temperatures can be regulated quickly due to the small volume of
viscometers enables measurement of low viscos- such samples. Circulator or immersion type small sample adap-
ity samples. tors can be selected for use with the temperature baths.

$JSDVMBUPS 5ZQF *NNFSTJPO 5ZQF
TH1 Rotor
This TH1 rotor is used with viscometers which
measure high viscosities and allows the exten-
Temperature baths
sion of the measurement range in the low viscos-
ity range. These baths control
the temperatures of
samples and are used
in combination with the
small sample adaptor.
