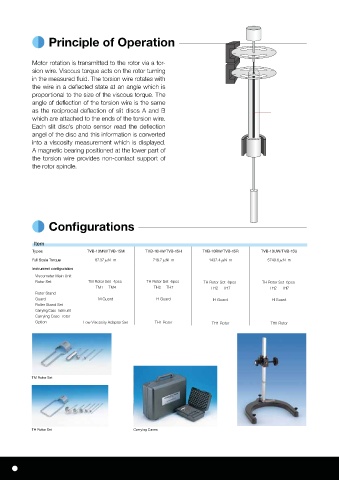

Principle of Operation

1IPUP 4FOTPS 4MJU %JTD "
Motor rotation is transmitted to the rotor via a tor-
sion wire. Viscous torque acts on the rotor turning
1IPUP 4FOTPS 4MJU %JTD #
in the measured fluid. The torsion wire rotates with
the wire in a deflected state at an angle which is
proportional to the size of the viscous torque. The
angle of deflection of the torsion wire is the same
as the reciprocal deflection of slit discs A and B 5PSTJPO 8JSF
which are attached to the ends of the torsion wire.
Each slit disc’s photo sensor read the deflection
angel of the disc and this information is converted
into a viscosity measurement which is displayed.
.BHOFUJD #FBSJOH
A magnetic bearing positioned at the lower part of
the torsion wire provides non-contact support of
the rotor spindle.

3PUPS

Configurations

Item
Types TVB-10MW/TVB-15M TVB-10HW/TVB-15H TVB-10RW/TVB-15R TVB-10UW/TVB-15U
Full Scale Torque 67.37ɹN ɾm 718.7ɹN ɾm 1437.4ɹN ɾ m 5749.6ɹN ɾ m
Instrument configuration
Viscometer Main Unit ˓ ˓ ˓ ˓
Rotor Set TM Rotor Set ʢ4pcsʣ TH Rotor Set ʢ6pcsʣ TH Rotor Set ʢ6pcsʣ TH Rotor Set ʢ6pcsʣ
ʢTM1 ʙ TM4ʣ ʢTH2 ʙ TH7ʣ ʢTH2 ʙ TH7ʣ ʢTH2 ʙ TH7ʣ
Rotor Stand ˓ ˓ ˓ ˓
Guard M Guard H Guard H Guard H Guard
Roller Stand Set ˓ ˓ ˓ ˓
Carrying Case ʢmain unitʣ ˓ ˓ ˓ ˓
Carrying Case ʢrotorʣ ˓ ˓ ˓ ˓
Option Low Viscosity Adaptor Set TH1 Rotor TH1 Rotor TH1 Rotor

TM Rotor Set

TH Rotor Set Carrying Cases 3PMMFS 4UBOE 4FU
