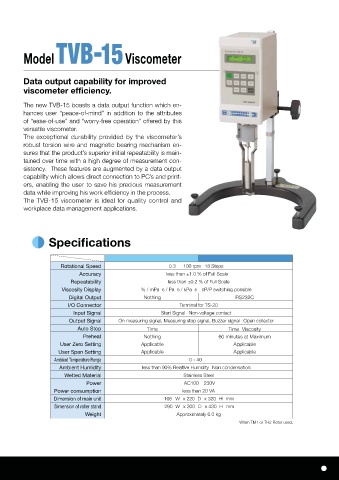

ModelTVB-15Viscometer

Data output capability for improved
viscometer efficiency.

The new TVB-15 boasts a data output function which en-
hances user “peace-of-mind” in addition to the attributes
of “ease-of-use” and “worry-free operation” offered by this
versatile viscometer.
The exceptional durability provided by the viscometer’s
robust torsion wire and magnetic bearing mechanism en-
sures that the product’s superior initial repeatability is main-
tained over time with a high degree of measurement con-
sistency. These features are augmented by a data output
capability which allows direct connection to PC’s and print-
ers, enabling the user to save his precious measurement
data while improving his work efficiency in the process.
The TVB-15 viscometer is ideal for quality control and
workplace data management applications.

Specifications

57# 8 57#
Rotational Speed 0.3 ʙ 100 rpm ʢ18 Stepsʣ
Accuracy less than ±1.0 % of Full Scale ˎ
Repeatability less than ±0.2 % of Full Scale
Viscosity Display % / mPa ɾs / Pa ɾs / kPa ɾsʢcP/P switching possibleʣ
Digital Output Nothing RS232C
I/O Connector Terminal for TS-20
Input Signal Start Signal ʢNon-voltage contactʣ
Output Signal On measuring signal, Measuring stop signal, Buzzer signal ʢOpen collectorʣ
Auto Stop Time Time ɾViscosity
Preheat Nothing 60 minutes at Maximum
User Zero Setting Applicable Applicable
User Span Setting Applicable Applicable
Ambient Temperature Range 0 - 40 ˆ
Ambient Humidity less than 90% Relative Humidity ʢNon condensationʣ
Wetted Material Stainless Steel
Power AC100ʙ230V
Power consumption less than 20 VA
Dimension of main unit 105 ʢWʣ x 220 ʢDʣ x 320 ʢHʣ mm
Dimension of roller stand 290 ʢWʣ x 300 ʢDʣ x 430 ʢHʣ mm

Weight Approximately 6.0 kg
ˎWhen TM1 or TH2 Rotor used.
