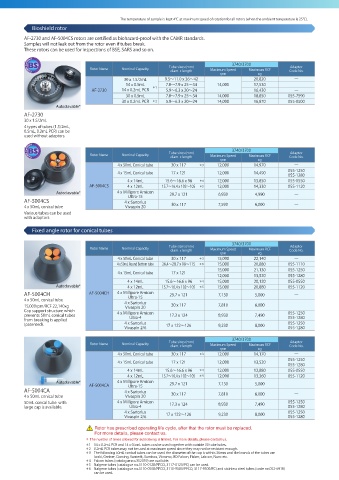

Page 4 - Kubota - 3740

The temperature of sample is kept 4℃ at maximum speed of rotation for all rotors (when the ambient temperature is 25℃).
Bioshield rotor
AF-2730 and AF-5004CS rotors are certified as biohazard-proof with the CAMR standards.
Samples will not leak out from the rotor even if tubes break.
These rotors can be used for inspections of BSE, SARS and so on.

3740/3700
Tube sizes (mm) Adaptor
Rotor Name Nominal Capacity Maximum Speed Maximum RCF
diam. x length Code No.
rpm xg
30 x 1.5/2mL 9.5〜11.0 x 36〜42 20,820 ―
14 x 0.5mL 7.0〜7.9 x 25〜34 14,000 17,530 ―
AF-2730 14 x 0.2mL PCR ＊1 5.9〜6.3 x 20〜24 16,430 ―
30 x 0.5mL 7.0〜7.9 x 25〜34 14,000 18,850 055-7590
30 x 0.2mL PCR ＊2 5.9〜6.3 x 20〜24 14,000 16,870 055-0500
Autoclavable*
AF-2730
30 x 1.5/2mL
4 types of tubes (1.5/2mL,
0.5mL, 0.2mL PCR) can be
used without adaptors.

3740/3700
Tube sizes (mm) Adaptor
Rotor Name Nominal Capacity Maximum Speed Maximum RCF
diam. x length Code No.
rpm xg
4 x 50mL Conical tube 30 x 117 ＊3 12,000 14,970 ―
055-1250 ＊3
4 x 15mL Conical tube 17 x 121 12,000 14,490
055-1280 ＊3
4 x 14mL 15.6〜16.6 x 96 ＊4 12,000 13,850 055-0550
AF-5004CS 4 x 12mL 15.7〜16.4 x 102〜105 ＊5 12,000 14,330 055-1120
Autoclavable* 4 x Millipore Amicon 29.7 x 121 6,930 4,990 ―
Ultra-15
AF-5004CS 4 x Sartorius
4 x 50mL conical tube Vivaspin 20 30 x 117 7,590 6,000 ―
Various tubes can be used
with adaptors.
Fixed angle rotor for conical tubes

3740/3700
Tube sizes (mm) Adaptor
Rotor Name Nominal Capacity Maximum Speed Maximum RCF
diam. x length Code No.
rpm xg
4 x 50mL Conical tube 30 x 117 ＊3 15,000 22,140 ―
4 x 50mL Round Bottom tube 26.4〜28.7 x 98〜115 ＊6 15,000 20,880 055-1110
15,000 21,130 055-1250
4 x 15mL Conical tube 17 x 121
12,000 13,520 055-1280
4 x 14mL 15.6〜16.6 x 96 ＊4 15,000 20,120 055-0550
Autoclavable* 4 x 12mL 15.7〜16.4 x 102〜105 ＊5 15,000 20,880 055-1120
AF-5004CH AF-5004CH 4 x Millipore Amicon 29.7 x 121 7,130 5,000 ―
4 x 50mL conical tube Ultra-15
4 x Sartorius
15,000rpm/RCF 22,140xg Vivaspin 20 30 x 117 7,810 6,000 ―
Cap support structure which 4 x Millipore Amicon 055-1250
prevents 50mL conical tubes Ultra-4 17.3 x 124 8,930 7,490 055-1280
from breaking is applied
(patented). 4 x Sartorius 17 x 122〜126 9,230 8,000 055-1250
Vivaspin 2/6 055-1280
3740/3700
Tube sizes (mm) Adaptor
Rotor Name Nominal Capacity Maximum Speed Maximum RCF
diam. x length Code No.
rpm xg
4 x 50mL Conical tube 30 x 117 ＊3 12,000 14,170 ―
055-1250
4 x 15mL Conical tube 17 x 121 12,000 13,520
055-1280
4 x 14mL 15.6〜16.6 x 96 ＊4 12,000 12,880 055-0550
4 x 12mL 15.7〜16.4 x 102〜105 ＊5 12,000 13,360 055-1120
Autoclavable* 4 x Millipore Amicon
AF-5004CA Ultra-15 29.7 x 121 7,130 5,000 ―
AF-5004CA 4 x Sartorius
4 x 50mL conical tube Vivaspin 20 30 x 117 7,810 6,000 ―
50mL concal tube with 4 x Millipore Amicon 17.3 x 124 8,930 7,490 055-1250
large cap is available. Ultra-4 055-1280
4 x Sartorius 17 x 122〜126 9,230 8,000 055-1250
Vivaspin 2/6 055-1280
Rotor has prescribed operating life cycle, after that the rotor must be replaced.
For more details, please contact us.
＊ The number of times allowed for autoclaving is limited. For more details, please contact us.
＊1 14 x 0.2mL PCR and 14 x 0.5mL tubes can be used together with outside 30 tube holes.
＊2 0.2mL PCR tubes may not be used at maximum speed since they may not be resistant enough.
＊3 The following 50mL conical tubes can be used: the diameter of the cap is within 36mm and the brands of the tubes are
I waki, Greiner, Corning, Sarstedt, Sumiron, Vioramo, BD Falcon, Fisher, Labcon, Nunc etc.
＊4 Falcon tubes (catalogue no.352059) are available.
＊5 Nalgene tubes (catalogue no.3110-0120/PPCO, 3117-0120/PC) can be used.
＊6 Nalgene tubes (catalogue no.3110-0500/PPCO, 3110-9500/PPCO, 3117-9500/PC) and stainless steel tubes (code no.052-6910)
can be used.
