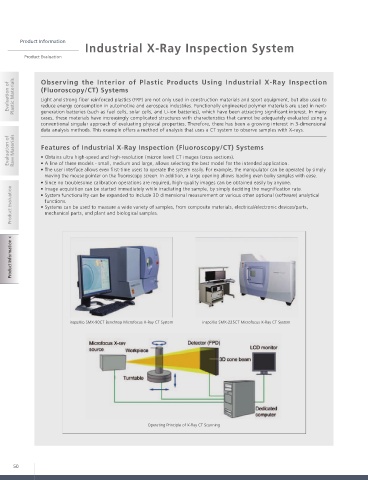

Industrial X-Ray Inspection System
Product Evaluation

Evaluation of Plastic Materials Observing the Interior of Plastic Products Using Industrial X-Ray Inspection
(Fluoroscopy/CT) Systems
Light and strong fiber reinforced plastics (FRP) are not only used in construction materials and sport equipment, but also used to
reduce energy consumption in automotive and aerospace industries. Functionally engineered polymer materials are used in next-
generation batteries (such as fuel cells, solar cells, and Li-ion batteries), which have been attracting significant interest. In many
cases, these materials have increasingly complicated structures with characteristics that cannot be adequately evaluated using a
conventional singular approach of evaluating physical properties. Therefore, there has been a growing interest in 3-dimensional
data analysis methods. This example offers a method of analysis that uses a CT system to observe samples with X-rays.
Evaluation of Raw Materials Features of Industrial X-Ray Inspection (Fluoroscopy/CT) Systems

• Obtains ultra high-speed and high-resolution (micron level) CT images (cross sections).
• A line of three models - small, medium and large, allows selecting the best model for the intended application.
• The user interface allows even first-time users to operate the system easily. For example, the manipulator can be operated by simply
moving the mouse pointer on the fluoroscopy screen. In addition, a large opening allows loading even bulky samples with ease.
• Since no troublesome calibration operations are required, high-quality images can be obtained easily by anyone.
Product Evaluation • System functionality can be expanded to include 3D dimensional measurement or various other optional (software) analytical
• Image acquisition can be started immediately while irradiating the sample, by simply deciding the magnification rate.
functions.
• Systems can be used to measure a wide variety of samples, from composite materials, electrical/electronic devices/parts,
mechanical parts, and plant and biological samples.

Product Information

inspeXio SMX-90CT Benchtop Microfocus X-Ray CT System inspeXio SMX-225CT Microfocus X-Ray CT System

Operating Principle of X-Ray CT Scanning
