Others

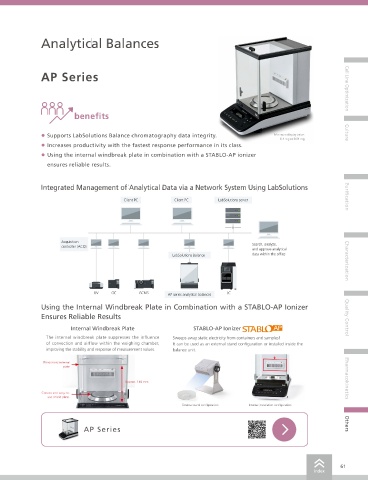

 Spectrofluorophotometer  Analytical Balances





 RF-6000       AP Series                                                                                           Cell Line Optimization







 benefits                 benefits


 •    Highest S/N Ratio in its class: 1,000 or more (RMS) /350 or more (P–P)  •    Supports LabSolutions Balance chromatography data integrity.  Minimum display value:   Culture
                                                                                              0.1 mg or 0.01 mg
 •   High-speed scanning of 60,000 nm/min minimizes scan time.  •    Increases productivity with the fastest response performance in its class.
 •   2,000 hour long-life Xenon lamp  •    Using the internal windbreak plate in combination with a STABLO-AP ionizer
 •   Spectrum-Corrected Excitation and Emission spectra can be scanned.  ensures reliable results.



               Integrated Management of Analytical Data via a Network System Using LabSolutions

                                          Client PC        Client PC     LabSolutions server                       Purification







                     Acquisition                                                    Search, analyze,
                     controller (ACQ)
                                                                                    and approve analytical
                                                          LabSolutions Balance      data within the office         Characterization


 Fluorescent Dyes for DNA Detection
 DNA検出用蛍光色素の測定
 Specified complementary DNA can be detected by using a DNA probe which is marked by fluorochrome. These probes become luminescent when   GCMS  AP series analytical balances
 DNAと結合したときにのみ蛍光を発する色素で標識されたDNAプローブを用いることで、プローブに相補的な特定のDNAを検出す
 bonded to DNA.
 ることができます。
 The following shows the results of a 3D measurement of DNA marked by two different kinds of DNA probes. Unique fluorescent peaks and profiles (3D   Using the Internal Windbreak Plate in Combination with a STABLO-AP Ionizer
 下図に2種類の蛍光色素で標識されたプローブによって蛍光を発するようになったDNAの3次元測定を行った結果を示します。
 Emission-Excitation matrix, as shown below) can be quickly measured using the high-speed scanning function.
 蛍光色素毎に現れる特有な蛍光ピークを、超高速スキャニング機能により迅速に確認することができます。
               Ensures Reliable Results                                                                            Quality Control
 EM Wavelength (nm)/EX Wavelength (nm)  EM Wavelength (nm)/EX Wavelength (nm)
                        Internal Windbreak Plate                 STABLO-AP Ionizer
 Fluorochrome A marked probe  Fluorochrome B marked probe
                The internal windbreak plate suppresses the influence   Sweeps away static electricity from containers and samples!
                of convection and airflow within the weighing chamber,   It can be used as an external stand configuration or installed inside the
                improving the stability and response of measurement values.  balance unit.
               Windshield internal
                      plate
                                          Approx. 140 mm                                                           Pharmacokinetics

               Convex and easy-to-
                 use shield plate.
                                                             External stand configuration  Internal installation configuration



 RF-6000                     AP Series                                                                             Others
