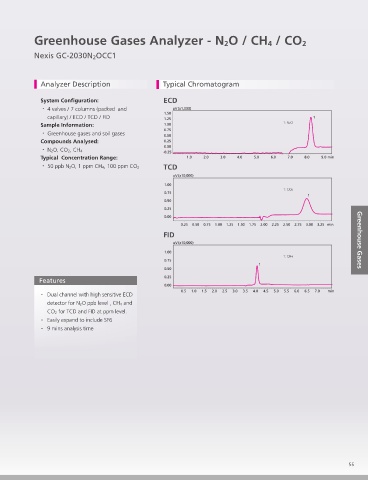

Greenhouse Gases Analyzer - N 2O / CH 4 / CO 2

Nexis GC-2030N 2OCC1

Analyzer Description Typical Chromatogram

System Configuration:
・ 4 valves / 7 columns (packed and
capillary) / ECD / TCD / FID
Sample Information:
・ Greenhouse gases and soil gases
Compounds Analysed:

・ N 2O, CO 2, CH 4
Typical Concentration Range:
・ 50 ppb N 2O, 1 ppm CH 4, 100 ppm CO 2

Features Greenhouse Gases

・ Dual channel with high sensitive ECD
detector for N 2O ppb level , CH 4 and
CO 2 for TCD and FID at ppm level.
・ Easily expand to include SF6
・ 9 mins analysis time
