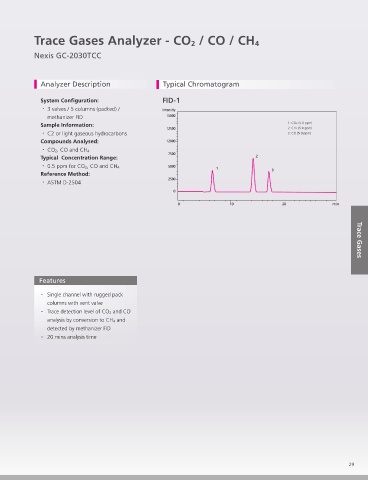

Trace Gases Analyzer - CO                           2 / CO / CH          4

            Nexis GC-2030TCC




              Analyzer Description                     Typical Chromatogram


              System Configuration:
              ・ 3 valves / 5 columns (packed) /
                 methanizer FID
              Sample Information:
              ・ C2 or light gaseous hydrocarbons
              Compounds Analysed:

              ・ CO 2, CO and CH 4
              Typical  Concentration Range:
              ・ 0.5 ppm for CO 2, CO and CH 4
              Reference Method:
              ・ ASTM D-2504


















              Features                                                                                                 Trace Gases


              ・  Single channel with rugged pack
                 columns with vent valve
              ・  Trace detection level of CO 2 and CO
                 analysis by conversion to CH 4 and
                 detected by methanizer FID
              ・  20 mins analysis time
