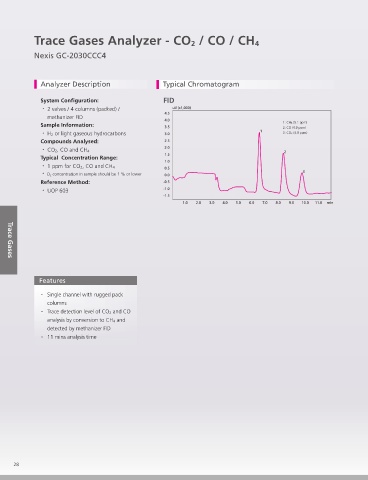

Trace Gases Analyzer - CO                           2 / CO / CH          4

            Nexis GC-2030CCC4




              Analyzer Description                     Typical Chromatogram


              System Configuration:
              ・ 2 valves / 4 columns (packed) /
                 methanizer FID
              Sample Information:
              ・ H 2 or light gaseous hydrocarbons
              Compounds Analysed:

              ・ CO 2, CO and CH 4
              Typical  Concentration Range:
              ・ 1 ppm for CO 2, CO and CH 4
               *  O 2 concentration in sample should be 1 % or lower
              Reference Method:
              ・ UOP 603












    Trace Gases


              Features


              ・  Single channel with rugged pack
                 columns
              ・  Trace detection level of CO 2 and CO
                 analysis by conversion to CH 4 and
                 detected by methanizer FID
              ・  11 mins analysis time
