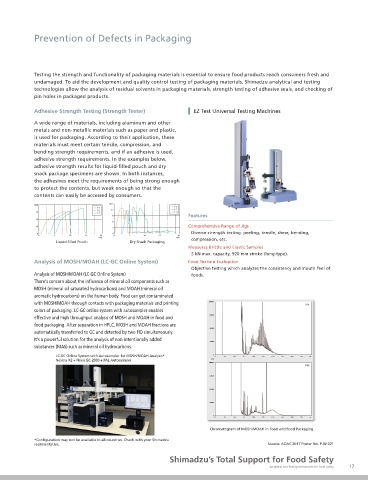

Inspection and Analysis of Foreign Matter Prevention of Defects in Packaging

Foreign matter can become mixed with food products during the production process for a variety of reasons. The discovery Testing the strength and functionality of packaging materials is essential to ensure food products reach consumers fresh and
and identification of foreign matter and ascertaining its source are essential for maintaining food safety. undamaged. To aid the development and quality control testing of packaging materials, Shimadzu analytical and testing
Shimadzu’s non-destructive testing and analytical technologies can be used to detect foreign matter that is not externally technologies allow the analysis of residual solvents in packaging materials, strength testing of adhesive seals, and checking of
visible and analyze for the elemental or molecular components. pin holes in packaged products.

Adhesive Strength Testing (Strength Tester) EZ Test Universal Testing Machines
Analysis of Inorganic Foreign Matter (EDX) Energy Dispersive X-ray Fluorescence Spectrometer
EDX-7000/8000/8100 A wide range of materials, including aluminum and other
An energy-dispersive X-ray fluorescence (EDXRF) spectrometer
metals and non-metallic materials such as paper and plastic,
permits the easy and rapid identification of inorganic foreign matter
is used for packaging. According to their application, these
adhering to, or mixed into, food products. Below is an example of
materials must meet certain tensile, compression, and
the qualitative analysis of a metal fragment on chocolate.
bending strength requirements, and if an adhesive is used,
adhesive strength requirements. In the examples below,
adhesive strength results for liquid-filled pouch and dry
Quantitative
analysis results Features snack package specimens are shown. In both instances,
Fe 70.06%
Cr 19.18% the adhesives meet the requirements of being strong enough
Ni 9.77% Large Sample Chamber
Mo 0.51% Accepts samples of up W300 x D275 x H100 mm. to protect the contents, but weak enough so that the
Cu 0.48% contents can easily be accessed by consumers.
Easy Operation
Automates complex set-up operations. Even novices can easily N40 N15
1-1 1-1
conduct accurate measurements. 30 1-2 12 1-2
1-3
1-3
Metal Foreign Matter on Chocolate 9 Features
20
6
10 3 Comprehensive Range of Jigs
Analysis of Organic Foreign Matter (FTIR) IRTracer-100 FTIR Spectrophotometer 0 0 Diverse strength testing: peeling, tensile, shear, bending,
0 5 10 15 20 0 7 14 21 30
min min compression, etc.
The Fourier transform infrared (FTIR) spectrophotometer measures Liquid-filled Pouch Dry Snack Packaging
the organic foreign matter spectrum and compares it with library Measures Brittle and Elastic Samples
5 kN max. capacity, 920 mm stroke (long-type).
data to identify the foreign matter. The example below shows the
analysis of contamination on a frozen pizza. Some of the foreign Analysis of MOSH/MOAH (LC-GC Online System) Food Texture Evaluation
Objective testing which analyzes the consistency and mouth feel of
substance was scraped off the frozen pizza, and the infrared Analysis of MOSH/MOAH (LC-GC Online System)
spectrum was measured using a transmission infrared microscope. The There‘s concern about the influence of mineral oil components such as foods.
spectrum of this foreign object was similar to that of a fluororesin.
Features MOSH (mineral oil saturated hydrocarbons) and MOAH (mineral oil
aromatic hydrocarbons) on the human body. Food can get contaminated
High Sensitivity
1 with MOSH/MOAH through contacts with packaging materials and printing 1000000
High S/N ratio above 60,000:1. Microscope permits analysis of colors of packaging. LC-GC online system with autosampler enables
Abs foreign matter in the micron size range. effective and high throughput analysis of MOSH and MOAH in food and 750000
contaminant Foreign Matter Analysis Program as Standard
0.5 food packaging. After separation in HPLC, MOSH and MOAH fractions are
Powerful support for foreign matter analysis. Includes more than 500000
300 spectra of recognized foreign matter. automatically transferred to GC and detected by two FID simultaneously.
It's a powerful solution for the analysis of non-intentionally added
fluororesin Easy Maintenance 250000
-0 substances (NIAS) such as mineral oil hydrocarbons.
4000 3000 2000 1500 1000 1/cm Automatic dryer protects the optical system. Eliminates superfluous
maintenance. LC-GC Online System with Autosampler for MOSH/MOAH Analysis* 0 0 2,5 5,0 7,5 10,0 12,5 15,0 17,5 20,0 22,5 min
Infrared Spectra of Contaminant and Fluororesin
Nexera X2 + Nexis GC-2030 + PAL Autosampler uV
1000000
EDXIR-Analysis software is specially designed to perform an Software for Integrated Analysis of EDX and FTIR Data 750000
integrated analysis of data from FTIR and EDX. The (EDXIR-Analysis)
library used for data analysis (containing 485 data as 500000
standard) is original to Shimadzu.
250000
EDX Data
0
0 2,5 5,0 7,5 10,0 12,5 15,0 17,5 20,0 22,5 min
Chromatogram of MOSH/MOAH in Food and Food Packaging
FTIR Data *Configuration may not be available in all countries. Check with your Shimadzu
Integrated Data Analysis of Foreign Matter representative. Source: AOAC 2017 Poster No. P-W-021
Shimadzu’s Total Support for Food Safety
16 Analytical and Testing Instruments for Food Safety 17
