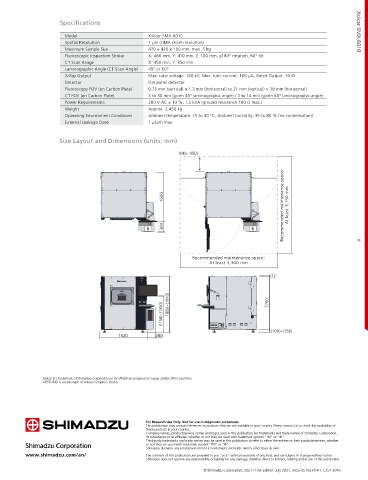

Page 16 - Shimadzu Xslicer SMX-6010

C251-E040
Specifications

Model Xslicer SMX-6010 Xslicer SMX-6010
Spatial Resolution 1 m (JIMA chart resolution)
Maximum Sample Size 470 × 420 × 100 mm, max. 5 kg
Fluoroscopic Inspection Stroke X: 460 mm, Y: 410 mm, Z: 100 mm, ±180° rotation, 60° tilt
CT Scan Range X: 350 mm, Y: 350 mm
Laminographic Angle (CT Scan Angle) 45° or 60°
X-Ray Output Max. tube voltage: 160 kV, Max. tube current: 100 A, Rated Output: 16 W
Detector Flat panel detector Microfocus X-Ray Inspection System
Fluoroscopy FOV (on Carbon Plate) 0.75 mm (vertical) × 1.3 mm (horizontal) to 21 mm (vertical) × 38 mm (horizontal)
CT FOV (on Carbon Plate) 3 to 30 mm (given 45° laminographic angle) / 3 to 14 mm (given 60° laminographic angle) Xslicer SMX-6010
Power Requirements 200 V AC ± 10 %, 1.5 kVA (ground resistance 100 max.)
Weight Approx. 2,450 kg
Operating Environment Conditions Ambient temperature: 15 to 30 °C, Ambient humidity: 35 to 80 % (no condensation)
External Leakage Dose 1 Sv/h max.

Size Layout and Dimensions (units: mm)

(Min. 450)

1600

384

22

(1150)~(1350) 1880~(1910) 1760

(100)~(150)
1520 280

Xslicer is a trademark of Shimadzu Corporation or its affiliated companies in Japan and/or other countries.
VGSTUDIO is a trademark of Volume Graphics Gmbh.

For Research Use Only. Not for use in diagnostic procedures.
