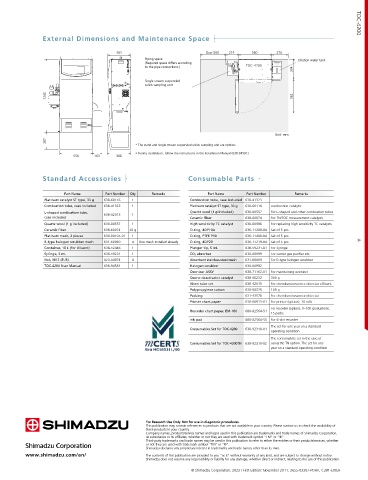

Page 16 - Shimadzu TOC-4200

C391-E083F

External Dimensions and Maintenance Space
TOC-4200
383 Over 500 214 550 270
Piping space Dilution water tank
(Required space differs according
to the pipe connections.) TOC-4200
334
108&3
Single stream suspended On-Line Total Organic Carbon Analyzer
solids sampling unit
1240 562 TOC-4200

Unit: mm
287
* The stand and single stream suspended solids sampling unit are options.
• During installation, follow the instructions in the Installation Manual (638-94591).
550 163 388

Standard Accessories Consumable Parts

Part Name Part Number Qty Remarks Part Name Part Number Remarks
Platinum catalyst ST type, 33 g 638-60116 1 Combustion tube, case included 638-41323
Combustion tube, case included 638-41323 1 Platinum catalyst ST type, 33 g 638-60116 combustion catalytic
L-shaped combustion tube, 638-42013 1 Quartz wool (1 g included) 630-00557 For L-shaped and other combustion tubes
case included Ceramic fiber 638-60074 For TN/TOC measurement catalysts
Quartz wool (1 g included) 630-00557 1 High sensitivity TC catalyst 630-00996 For replacing high sensitivity TC catalysts
Ceramic fiber 638-60074 20 g O-ring, 4DP10A 036-11209-84 Set of 5 pcs
Platinum mesh, 2 pieces 630-00105-01 1 O-ring, PTFE P10 036-11408-84 Set of 5 pcs
B-type halogen scrubber mesh 631-60069 4 One mesh installed already O-ring, 4DP20 036-11219-84 Set of 5 pcs
Container, 10 L (for diluent) 638-52446 1 Plunger tip, 5 mL 638-59231-01 For Syringe
Syringe, 5 mL 638-59231 1 CO2 absorber 630-00999 For carrier gas purifier etc.
Nut, M12 (SUS) 023-04074 4 Absorbent stainless steel mesh 631-60069 For B-type halogen scrubber
TOC-4200 User Manual 638-94581 1 Halogen scrubber 630-00992
Ozonizer ASSY 638-71162-01 For maintaining ozonizer
Ozone deactivator catalyst 638-65232 300 g
Viton tube set 638-42015 For chemiluminescence detector effluent
Polypropylene cotton 630-00325 100 g
Packing 631-43578 For chemiluminescence detector
Printer chart paper 630-08913-01 For printer (option), 10 rolls
For recorder (option), 0~100 graduations,
Recorder chart paper, EM-100 080-82564-51
15 packs
Ink pad 080-82564-55 For 6-dot recorder
The set for one year on a standard
Consumables Set for TOC-4200 638-92310-01
operating condition
The consumables set in the case of
Consumables Set for TOC-4200TN 638-92310-02 using the TN option. The set for one
year on a standard operating condition
