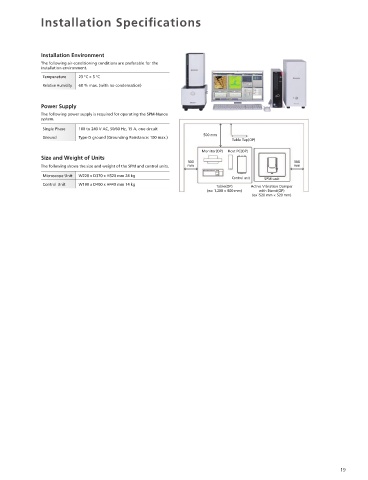

Installation Specifications

Installation Environment
The following air-conditioning conditions are preferable for the
installation environment.
Temperature 23 °C ± 5 °C
Relative Humidity 60 % max. (with no condensation)

Power Supply
The following power supply is required for operating the SPM-Nanoa
system.
Single Phase 100 to 240 V AC, 50/60 Hz, 15 A, one circuit
500 mm
Ground Type-D ground (Grounding Resistance: 100 max.)
Table Tap(OP)
Monitor(OP) Host PC(OP)
Size and Weight of Units
300 300
The following shows the size and weight of the SPM and control units. mm mm
Microscope Unit W220 x D370 x H520 mm 24 kg
Control unit SPM unit
Control Unit W190 x D400 x H440 mm 14 kg Table(OP) Active Vibration Damper
(ex: 1,200 × 800 mm) with Stand(OP)
(exɿ520 mm × 520 mm)

19
