C190-E288

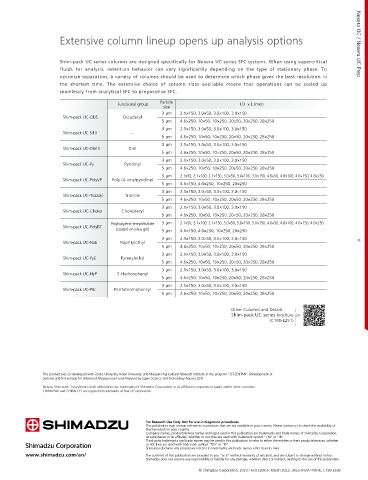

Extensive column lineup opens up analysis options Nexera UC / Nexera UC Prep

Shim-pack UC series columns are designed specifically for Nexera UC series SFC systems. When using supercritical
fluids for analysis, retention behavior can vary significantly depending on the type of stationary phase. To
optimize separation, a variety of columns should be used to determine which phase gives the best resolution in
Analytical, Preparative Supercritical Fluid Chromatograph and Supercritical Fluid Extraction System
the shortest time. The extensive choice of column sizes available means that operations can be scaled up
seamlessly from analytical SFC to preparative SFC. Nexera UC

Functional group Particle I.D. × L (mm)
size
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150 Nexera UC Prep
Shim-pack UC-ODS Octadecyl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC Sil II –
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-Diol II Diol
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-Py Pyridinyl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×50, 2.1×100, 2.1×150, 3.0×50, 3.0×100, 3.0×150, 4.6×50, 4.6×100, 4.6×150, 4.6×250
Shim-pack UC-PolyVP Poly (4-vinylpyridine)
5 µm 4.6×150, 4.6×250, 10×250, 20×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-Triazole Triazole
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-Choles Cholesteryl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
Polybutylene terephthalate 3 µm 2.1×50, 2.1×100, 2.1×150, 3.0×50, 3.0×100, 3.0×150, 4.6×50, 4.6×100, 4.6×150, 4.6×250
Shim-pack UC-PolyBT
(coated on silica gel) 5 µm 4.6×150, 4.6×250, 10×250, 20×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-NaE Naphtylethyl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-PyE Pyrenylethyl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-HyP 3-Hydroxphenyl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250
3 µm 2.1×150, 3.0×50, 3.0×100, 3.0×150
Shim-pack UC-PBr Pentabromobenzyl
5 µm 4.6×250, 10×50, 10×250, 20×50, 20×250, 28×250

Other Columns and Details
Shim-pack UC series brochure
(C190-E251)

This product was co-developed with Osaka University, Kobe University, and Miyazaki Agricultural Research Institute in the program "JST-SENTAN" (Development of
Systems and Technology for Advanced Measurement and Analysis) by Japan Science and Technology Agency (JST).
