Enhanced Support System for Data Management

                                                                                                                                        LabSolutions  DB/CS Realizes Complete Data Integrity*
                                                                                                                                                      ™

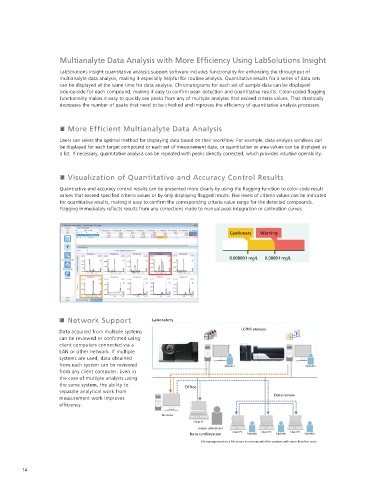

                     Multianalyte Data Analysis with More Efficiency Using LabSolutions Insight
                     LabSolutions Insight quantitative analysis support software includes functionality for enhancing the throughput of
                     multianalyte data analysis, making it especially helpful for routine analysis. Quantitative results for a series of data sets
                     can be displayed at the same time for data analysis. Chromatograms for each set of sample data can be displayed
                     side-by-side for each compound, making it easy to confirm peak detection and quantitative results. Color-coded flagging
                     functionality makes it easy to quickly see peaks from any of multiple analytes that exceed criteria values. That drastically
                     decreases the number of peaks that need to be checked and improves the efficiency of quantitative analysis processes.



                        More Efficient Multianalyte Data Analysis                                                                       LabSolutions DB/CS is the integration software for analytical instruments that complies with regulations regarding electron-
                     Users can select the optimal method for displaying data based on their workflow. For example, data analysis windows can   ic records and signatures, such as "FDA 21 CFR Part 11" and "ER/ES guidelines".
                     be displayed for each target compound or each set of measurement data, or quantitation or area values can be displayed as   Data management with LabSolutions prevents overwriting or deleting analysis data. It also offers a complete suite of
                     a list. If necessary, quantitative analysis can be repeated with peaks directly corrected, which provides intuitive operability.  advanced security features to provide an optimal solution for data integrity.



                        Visualization of Quantitative and Accuracy Control Results                                                      Network System: LabSolutions CS
                     Quantitative and accuracy control results can be presented more clearly by using the flagging function to color-code result   Data acquired from multiple systems can be reviewed or confirmed using client computers connected via a LAN or other
                     values that exceed specified criteria values or by only displaying flagged results. Five levels of criteria values can be indicated   network. If multiple systems are used, data obtained from each system can be reviewed from any client
                     for quantitative results, making it easy to confirm the corresponding criteria value range for the detected compounds.   computer. Even in the case of multiple analysts using the same system, the ability to separate analytical work from measure-
                     Flagging immediately reflects results from any corrections made to manual peak integration or calibration curves.
                                                                                                                                        ment work improves work efficiency.
                                                                                                                                                                                               * 3                * 2
                                                                                                                                                   LabSolutions server  Laboratory or office  Tablet       Client PC

                                                                             Cautionary  Warning

                                                                                                                                                          * 1
                                                                                                                                                 Acquisition
                                                                             0.000001 mg/L  0.00001 mg/L                                         cotoroller PC



                                                                                                                                                                                                       EDX  TOC-V   AA
                                                                                                                                                          LC   GC      Agilent LC, GC  Thermo LC, GC  Combine with
                                                                                                                                                                                                      Multi-Data Registration License
                                                                                                                                                                                                      to enable integrated management
                                                                                                                                                                                                      of these instruments’ data  and
                                                                                                                                                                                                      user information.
                       Network Support             Laboratory
                                                                                                                                                     LCMS      GCMS     FTIR    UV      RF    TA
                                                      GC/MS analysis             LC/MS analysis
                     Data acquired from multiple systems                                                                                                                                               PC
                     can be reviewed or confirmed using
                     client computers connected via a
                     LAN or other network. If multiple
                                                                                                                                                                                                       A instrument  B instrument
                     systems are used, data obtained
                     from each system can be reviewed                      Operator                   Operator                                                                                        Combine with
                                                                                                                                                                                                      Multi-Data Registration License
                     from any client computer. Even in                                                                                              Balance  PPSQ ™  ICPMS  Particle Size  AG  TOC-L  to enable integrated management
                                                                                                                                                                            Analyzer
                     the case of multiple analysts using
                     the same system, the ability to          Office                                                                     *1 The acquisition control PC controls analytical instruments. It can also be used to send analytical instructions and perform postrun analysis, just like a client PC.
                                                                                                                                        *2 If a terminal service is used, then LabSolutions software does not need to be installed on client PCs.
                     separate analytical work from                                                                                      *3 If an iPad is used, then XenApp from Citrix must be installed.
                                                                                            Data review
                     measurement work improves
                     efficiency.
                                                                                                                                        Standalone Database System: LabSolutions DB
                                                       File Server
                                                                 Client PC                                                              LabSolutions DB manages data by connecting a computer with analysis instruments, which do not have network connections. It is
                                                                   Analysis administrator                                               recommended for facilities that do not require network connections and want to be ER/ES compliant with one computer.
                                                                Data confirmation  Client PC  Operator  Client PC  Operator  Client PC  Operator
                                                                                                                                        *LabSolutions DB/CS is optional software that provides enhanced data integrity support. Some analysis systems and functions are not supported in contrast to the standard
                                                                    File management on a file server is recommended for systems with more than five users.
                                                                                                                                          workstation software GCMSsolution.
