Data Management

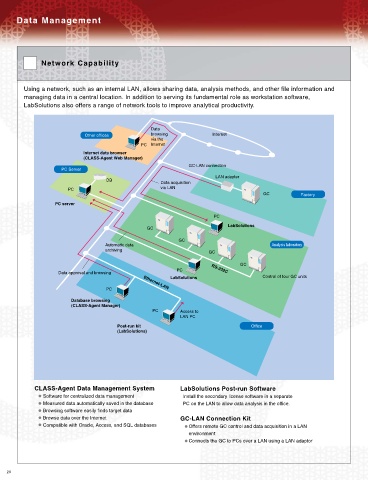

Network Capability LabSolutions Ver. 5.3 Specifications

Using a network, such as an internal LAN, allows sharing data, analysis methods, and other file information and Software Specifications
managing data in a central location. In addition to serving its fundamental role as workstation software, Compatible with Windows XP Professional (SP2 or SP3) / Vista Business (SP1 or later)
LabSolutions also offers a range of network tools to improve analytical productivity. 32-bit application (capable of long filenames)
Graphical user interface (assistant bar, etc.)
Instrument Control
Controls GC-2010 Plus, GC-2010, GC-2014,GC-14B (A), AOC-20i/s. Simultaneously controls a maximum of four GC or LC units (multi-license
Data
Other offices browsing Internet version permits registering up to 16 units).
via the Supports dual-injection system and a maximum of four GC-2010 detectors or two non-GC-2010 detectors.
PC Internet
Data Acquisition
Internet data browser
Offers minimum sampling time of 4 ms, snapshot function, single analysis and batch analysis capability, Batch Table Wizard, analysis add or
(CLASS-Agent Web Manager)
insert function, extended analysis time function, automatic data file name creation, QA/QC (statistical) functions, batch auto-stop function, user
GC-LAN connection
PC Server program launcher function, pre-run program support, and OLE automation compatibility (for batch analysis, etc.).
LAN adapter Data Processing and Data Analysis
DB
Data acquisition Automatic and manual peak integration, manipulation, identification (supports multiple relative retention times and grouping), quantitation (area
PC via LAN normalization method, corrected area normalization method, internal standard method, external standard method, standard addition method, index
GC Factory
calculation, manual coefficient input), calibration points and levels (16 levels � 10 points), manual calibration curve creation, column performance
PC server
calibration, data comparison functions, relative retention time (RRT) display, retention time correction (AART)
Report Generation
PC
Over ten types of report items (sample information, configuration settings, methods, chromatograms, peak tables, calibration curves, grouping
LabSolutions
GC results, diagrams, text, etc.), layout customization and preview functions, summary report
Files
GC Data Explorer for file management, All-In-One file structure, file conversion (CLASS-GC10 format, AIA ANDI format, and text format),
Automatic data Analysis laboratory
archiving GC/LCsolution file loading, file searching, template functions
GC
Hardware Functions
GC Shutdown/startup functions, system check (GC self-diagnosis), status log, system suitability test (SST) functions
PC RS-232C GLP/GMP Compliance
Data approval and browsing
LabSolutions Control of four GC units Audit trail, software validation, security, Part 11 compliance functions
Network Capability
Ethernet-LAN
PC
GC-LAN connectivity (optional LAN adapter)
Database browsing Other
(CLASS-Agent Manager) Maintenance guide (GC-2010 Plus, GC-2010, GC-2014, GC-17A/1700, GC-14A/B, AOC-20i)
PC Access to
LAN PC
Post-run kit Office
(LabSolutions)
Example of LabSolutions PC Configuration

ᶃ PC:
CPU Intel Pentium processor E5300 2.60 GHz, RAM: 2 GB, HDD: 160 GB
Super multi-drive, OADG keyboard, 1000BASE-T/100BASE-TX/10BASE-T LAN interface
CLASS-Agent Data Management System LabSolutions Post-run Software ᶄ Operating Software
Software for centralized data management Install the secondary license software in a separate Windows XP Professional SP2
Measured data automatically saved in the database PC on the LAN to allow data analysis in the office. LabSolutions Ver. 5.3
Browsing software easily finds target data CLASS-Agent Manager Ver.2.32 SU1
Browse data over the Internet GC-LAN Connection Kit Adobe Acrobat Reader (Read only. Cannot create PDF files)
Compatible with Oracle, Access, and SQL databases Offers remote GC control and data acquisition in a LAN ᶅ Liquid Crystal Display: 17-inch TFT LCD
environment ᶆ RS232C Cable 2 m (228-35397-92): 1 (Single GC) or 2 (Multi GC)
Connects the GC to PCs over a LAN using a LAN adaptor LabSolutions Single GC can control one GC unit. To control two or more GC units, use LabSolutios Multi GC.
To control GC-14B(A) units, one CBM-102 interface is required for each GC unit.
