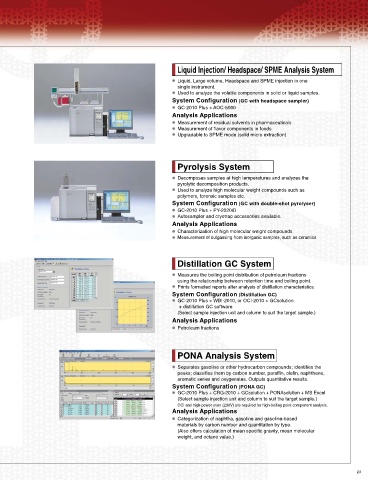

Page 23 - Shimadzu GC-2010 Plus

Application Systems

Application systems respond to

your analytical needs. Liquid Injection/ Headspace/ SPME Analysis System
Liquid, Large volume, Headspace and SPME injection in one
single instrument.
Used to analyze the volatile components in solid or liquid samples.
System Configuration (GC with headspace sampler)
GC-2010 Plus + AOC-5000
Advanced Flow Technology Application Systems Analysis Applications
Measurement of residual solvents in pharmaceuticals
Measurement of flavor components in foods
Upgradable to SPME mode (solid micro extraction)
Thermal Desorption System
Backflush System
Liquid Injection/ Headspace/ SPME Analysis System

Detector splitting system Pyrolysis System Pyrolysis System
Decomposes samples at high temperatures and analyzes the
Distillation GC System pyrolytic decomposition products.
Multi-dimensional GC/GCMS System Used to analyze high molecular weight compounds such as
MDGC/GCMS-2010 Series PONA Analysis System polymers, forensic samples etc.
System Configuration (GC with double-shot pyrolyser)
GC-2010 Plus + PY-2020iD
Autosampler and cryotrap accessories available.
Analysis Applications
Characterization of high molecular weight compounds
Measurement of outgassing from inorganic samples, such as ceramics

Distillation GC System
Measures the boiling point distribution of petroleum fractions
using the relationship between retention time and boiling point.
Prints formatted reports after analysis of distillation characteristics.
System Configuration (Distillation GC)
GC-2010 Plus + WBI-2010, or OCI-2010 + GCsolution
+ distillation GC software
Application Systems (Select sample injection unit and column to suit the target sample.)
Analysis Applications
Petroleum fractions

Thermal Desorption System PONA Analysis System
Used to analyze gas sample tubes – organic vapors are collected on sample Separates gasoline or other hydrocarbon compounds; identifies the
tubes at a sample site by drawing a large volume of air thru the tube over a peaks; classifies them by carbon number, paraffin, olefin, naphthene,
long period of time. aromatic series and oxygenates. Outputs quantitative results.
Sample tubes are thermally desorbed on the Thermal Desorption System to
System Configuration (PONA GC)
introduce the organic vapors into the GC.
GC-2010 Plus + CRG-2010 + GCsolution + PONAsolution + MS Excel
System Configuration (Select sample injection unit and column to suit the target sample.)
GC-2010 Plus + TD-20 OCI and high-power oven (230V) are required for high-boiling point component analysis.
Analysis Applications
Analysis Applications
Categorization of naphtha, gasoline and gasoline-based
Measurement of air pollutants
materials by carbon number and quantitation by type.
Measurement of gases generated from parts or materials (outgassing)
(Also offers calculation of mean specific gravity, mean molecular
Measurement of fragrance components
weight, and octane value.)
