Enhanced Productivity

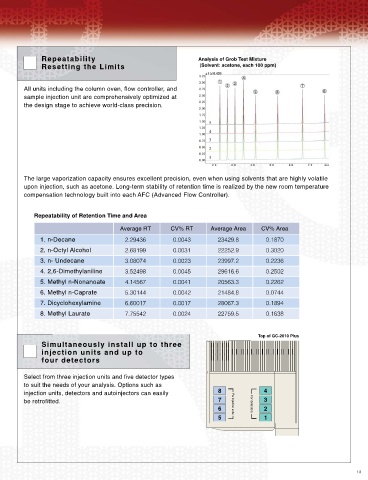

Repeatability Analysis of Grob Test Mixture
Rapid Oven Heating*/ Cooling
Resetting the Limits (Solvent: acetone, each 100 ppm)

The GC-2010 Plus incorporates a double-jet cooling system, consisting of an exhaust fan to discharge hot air and an All units including the column oven, flow controller, and
intake fan to draw in cooling air. The system enables the reduction of cooling time from 450°C to 50°C in 3.4 min. sample injection unit are comprehensively optimized at
the design stage to achieve world-class precision.
Double-jet cooling system
Large fan rapidly
discharges hot air.
Column oven temperature (°C)
Small fan added
to enhance
efficiency of
cooling air intake

3.4min The large vaporization capacity ensures excellent precision, even when using solvents that are highly volatile
upon injection, such as acetone. Long-term stability of retention time is realized by the new room temperature
Time (minutes)
compensation technology built into each AFC (Advanced Flow Controller).

Hydrocarbon analysis in conventional mode Repeatability of Retention Time and Area

Average RT CV% RT Average Area CV% Area
1. n-Decane 2.29436 0.0043 23429.8 0.1870
2. n-Octyl Alcohol 2.68199 0.0031 22252.9 0.3020
Approx.
24 min. 4.7 min. 3. n- Undecane 3.08074 0.0023 23997.2 0.2236

Cooling To next analysis 4. 2,6-Dimethylaniline 3.52498 0.0045 29616.6 0.2502
5. Methyl n-Nonanoate 4.14567 0.0041 20563.3 0.2262
6. Methyl n-Caprate 5.30144 0.0042 21484.8 0.0744
Total analysis time: 28.7 min.
Hydrocarbon analysis with GC-2010 Plus high power oven model (230V) 7. Dicyclohexylamine 6.60017 0.0017 28067.3 0.1894
8. Methyl Laurate 7.75542 0.0024 22759.5 0.1638

Approx. Top of GC-2010 Plus
12.5 min. 2.7min.
Simultaneously install up to three
injection units and up to
Cooling To next analysis
four detectors

Select from three injection units and five detector types
Total analysis time: 15.2 min.
to suit the needs of your analysis. Options such as
*Rapid oven heating is available with the high power oven (230V model) only.
injection units, detectors and autoinjectors can easily 8 4
be retrofitted. 7 For injection units For detectors 3
6 2
Gas Saver Function
Reduces Carrier Gas Usage 5 1

The GC-2010 Plus features a gas saving function that considerably reduces carrier gas consumption. In the split/
splitless sample injection mode, the split ratio can be reduced after injection and during stand-by.
