Page 11 - Shimadzu GC-2010 Plus

Leading Sensitivity Enhanced Productivity

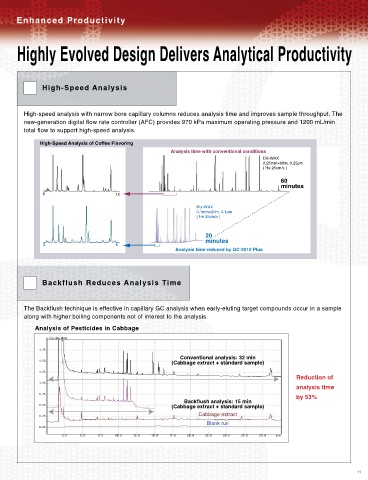

Industry Leading Detector Sensitivity Highly Evolved Design Delivers Analytical Productivity

Electron Capture Detector*
High-Speed Analysis
ECD-2010 Plus

A highly sensitive and selective detector for the analysis of electrophilic
Minimum Detected High-speed analysis with narrow bore capillary columns reduces analysis time and improves sample throughput. The
compounds.
Quantity:6fg/sec
Top class sensitivity results from upgraded cell insulation and a cell/flow line new-generation digital flow rate controller (AFC) provides 970 kPa maximum operating pressure and 1200 mL/min
total flow to support high-speed analysis.
design to reduce contamination.
Compact design achieves shorter stabilization times. High-Speed Analysis of Coffee Flavoring
ECD cell is common with that for GC-2010 (ECD-2010). Analysis time with conventional conditions
*In some countries, registration with the appropriate authority for regulation of radioisotopes is required before DB-WAX
purchasing or using this detector. (Contact your Shimadzu representative for details.) 0.25mm×60m, 0.25µm
( He 25cm/s )
60
Flame Thermionic Detector (NPD) minutes
6 12
FTD-2010 Plus
Rtx-WAX
0.1mm×20m, 0.1µm
For analysis of organo nitrogen and phosphorus compounds, such as residual ( He 25cm/s )
Minimum Detected
pesticides. Quantity:0.1pgN/sec
Improved collector design reduces negative peaks from impurity components.
20
No tools needed for collector replacement. minutes
3 5
Alkali source regeneration kit (option) reduces operational costs.
Analysis time reduced by GC-2010 Plus
Hydrogen connector fittings have reverse threads to prevent pipe connections.

Improved Collector of FTD-2010 Plus Reduces Negative Peaks.
Backflush Reduces Analysis Time
Improved collector – zoom Standard collector – zoom

The Backflush technique is effective in capillary GC analysis when early-eluting target compounds occur in a sample
along with higher boiling components not of interest to the analysis.
Analysis of Pesticides in Cabbage

Conventional analysis: 32 min
15.0 17.5 20.0 22.5 min 15.0 17.5 20.0 22.5 min (Cabbage extract + standard sample)

Reduction of
Thermal Conductivity Detector
analysis time
TCD-2010 Plus by 53%
Backflush analysis: 15 min
(Cabbage extract + standard sample)
For analysis of gases and concentrated organic compounds.
Sensitivity: Cabbage extract
Microvolume cell optimized for capillary column analysis. 20000mV mL/mg
Short stabilization time. (decane) Blank run

10 11
