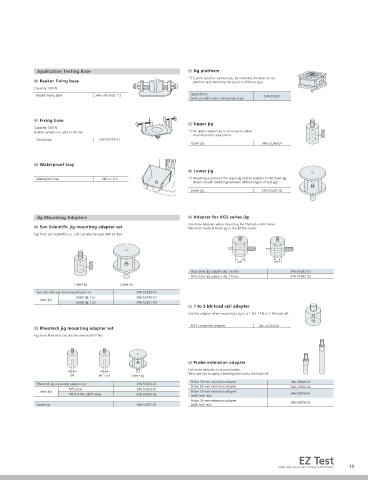

Page 19 - Shimadzu EZ Test

Jig Part Number List

*1 : 52 An upper adapter jig is necessary *2 : 53 A lower adapter jig is necessary *3 : 51 A jig platform is necessary

Application Jigs Application Testing Base Jig platform
*3 Can be used for various tests by removing the plate on the
Ottawa cell set Boil-in-bag piercing stand Beaker fixing base platform and switching the jig for a different type.
Capacity : 500 N Capacity : 20 N Capacity: 500 N
Cell Internal size: 57 mm Piercing rod : R0. 5 mm Beaker fixing base 346-51819-02 *2 Jig platform
Piercing stand hole : 12 mm dia. (with standard plate and sample tray) 346-57823
Ottawa cell set (accessories) R0.5 mm
Plate with 3 mm dia. hole Boil-in-bag piercing stand and rod 346-52271-01 *1 *2 12 mm
Plate with 6 mm dia. hole 346-57821 *3 Boil-in-bag piercing rod 347-52778 *1
Accessories
Plate with 3 mm dia. wire
Plate with 6 mm dia. wire
Fixing base
Upper jig
Capacity: 500 N
Fixable sample size: ø25 to 60 mm *1 An upper adapter jig is necessary to allow
Syringe extrusion test jig smooth probe replacement.
Fixing base 346-51819-01
A B C D Capacity : 500 N Upper jig 346-52280-01
Applicable syringe size: Maximum syringe diameter 30mm
Option
Syringe extrusion test jig 346-57828
Volume reduction adapter (dia. 46 mm) 346-57821-11 Adapter with 30 mm dia. hole 348-38626-06
Volume reduction adapter (37 × 37 mm) 346-57821-12 Adapter with 25 mm dia. hole 348-38626-05
The adapter is inserted into the Ottawa cell to reduce the inner volume. Adapter with 20 mm dia. hole 348-38626-04 154mm Waterproof tray
The adapter comes in a set with compression plates. Item list Adapter with 15 mm dia. hole 348-38626-03 Lower jig
Adapter with 10 mm dia. hole 348-38626-02 *2 Attaching a probe to the upper jig and an adapter to the lower jig
Adapter without hole 348-38626-01 Waterproof tray 346-57115 allows smooth switching between different types of test jigs.
(The customer can drill a hole as desired.)
Lower jig 346-52281-02
Tubing test jig
Capacity : 500 N 4.5 mm
Sample container : 50 mm Syringe needle attachment jig
Disks with hole (3, 5, 7 or 10 mm dia.) is included.
Capacity : 500 N Jig Mounting Adapters Adapter for AGS series jig
Tubing test jig Needle holder size: 4 to 4.5 mm, L10 mm 10 mm
A: Adapter with 3 mm dia. hole Sun Scientific jig mounting adapter set Use these adapters when mounting the Shimadzu AGS Series
Precision Universal Tester jig to the EZ Test tester.
B: Adapter with 5 mm dia. hole 346-57818 *3 Syringe needle attachment jig 346-51688-02 4 mm
Accessories
C: Adapter with 7 mm dia. hole Jigs from Sun Scientific Co., Ltd. can also be used with EZ Test.
D: Adapter with 10 mm dia. hole
A B C D
Toothbrush jig set
This jig set makes it possible to measure the drawing force of bristles of
toothbrushes or interdental brushes. ø16 ø10
Capacity : 20 N
Applicable standard: JIS S3016 AGS series jig adapter dia. 16 mm 346-51692-01
Overflow test jig set Vice Capacity : 30 mm AGS series jig adapter dia. 10 mm 346-51692-02
Capacity : 50 N Toothbrush jig set (vise) 346-52291-01 Upper jig Lower jig
Sample Container: Internal Diameter 50 mm
Sun Scientific jig mounting adapter set 346-52295-01
Overflow test jig set Upper jig, 1 pc 346-52280-01
A: Compression plate adapter dia. 45 mm Item list Lower jig, 1 pc 346-52281-02
Accessories B: Compression plate adapter dia. 40 mm 346-57813 *1 *3 Tablet press-dispense jig set 1 to 5 kN load cell adapter
C: Compression plate adapter dia. 35 mm Capacity : 500 N
Punch size: 0.5" dia. (round-tipped) Use this adapter when mounting a jig to a 1 kN, 2 kN or 5 kN load cell.
Tablet press-dispense jig set 346-57819 *1 *3 M12 conversion adapter
A: Adapter with 17 mm dia. hole 348-38604-02 Rheotech jig mounting adapter set 347-55350-01
B: Adapter with 12 mm dia. hole 348-38604-01
Roller-type noodle tensile jig C: Adapter with 17 mm dia. Jigs from Rheotech can also be used with EZ Test.
Accessories 348-38567
Capacity : 100 N hole + R5 /L23 mm slotted hole
Roller diameter : 16 mm D: R5 /L23 mm slotted hole 348-38603
(For capsules 1-5)
Roller-type noodle tensile jig 346-57826
Probe extension adapter
A B C D Use these adapters to extend probes.
Take care not to apply a bending force onto the load cell.
M5 M5 × 0.9 Lower jig
Noodle tensile jig (Sponge-grip type)
Probe 30-mm extension adapter 348-38500-03
Capacity: 50 N Rheotech jig mounting adapter set 346-51820-03 Probe 60-mm extension adapter
M5 screw 346-51820-01 348-38500-04
Item list Probe 30-mm extension adapter 346-59376-01
Noodle tensile jig 346-522640-01 M5 0.9 mm pitch screw 346-51820-02 (with lock nut)
Probe 30-mm extension adapter 346-59376-02
Lower jig 346-52281-01 (with lock nut)
EZ Test
18 Table-Top Universal Testing Instruments 19
