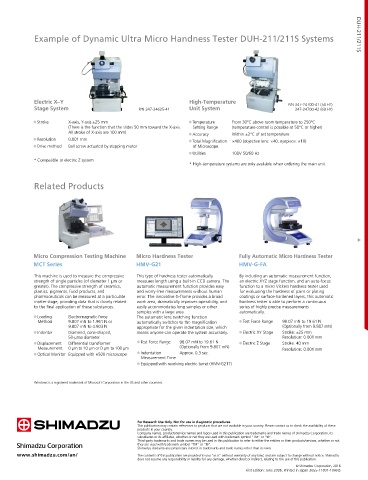

Page 12 - Shimadzu DUH-211/

C227-E024C

Example of Dynamic Ultra Micro Handness Tester DUH-211/211S Systems DUH-211/211S

Dynamic Ultra Micro Hardness Testers
DUH-211/211S

Electric X–Y High-Temperature P/N 347-24700-41 (50 Hz)
Stage System P/N 347-24625-41 Unit System 347-24700-42 (60 Hz)

• Stroke X-axis, Y-axis ±25 mm • Temperature From 30°C above room temperature to 250°C
(There is the function that the slides 50 mm toward the X-axis. Setting Range (temperature control is possible at 50°C or higher)
All stroke of X-axis are 100 mm) • Accuracy Within ±2°C of set temperature
• Resolution 0.001 mm • Total Magnification ×400 (objective lens: ×40; eyepiece: ×10)
• Drive method Ball screw actuated by stepping motor of Microscope
• Utilities 100V 50/60 Hz
* Compatible to electric Z system.
* High-temperature systems are only available when ordering the main unit.

Related Products

Micro Compression Testing Machine Micro Hardness Tester Fully Automatic Micro Hardness Tester
MCT Series HMV-G21 HMV-G-FA
This machine is used to measure the compressive This type of hardness tester automatically By including an automatic measurement function,
strength of single particles (of diameter 1 µm or measures length using a built-in CCD camera. The an electric XYZ stage function, and an auto-focus
greater). The compressive strength of ceramics, automatic measurement function provides easy function to a micro Vickers hardness tester used
plastics, pigments, food products, and and worry-free measurements without human for evaluating the hardness of paint or plating
pharmaceuticals can be measured at a particulate error. The innovative G-frame provides a broad coatings or surface-hardened layers, this automatic
matter stage, providing data that is closely related work area, dramatically improves operability, and hardness tester is able to perform a continuous
to the final application of these substances. easily accommodates long samples or other series of highly precise measurements
samples with a large area. automatically.
• Loading Electromagnetic force The automatic lens switching function
Method 9.807 mN to 1.961 N or automatically switches to the magnification • Test Force Range 98.07 mN to 19.61 N
9.807 mN to 4.903 N appropriate for the given indentation size, which (Optionally from 9.807 mN)
• Indenter Diamond, cone-shaped, means anyone can operate the system accurately. • Electric XY Stage Stroke: ±25 mm
50-µmø diameter Resolution: 0.001 mm
• Displacement Differential transformer • Test Force Range 98.07 mN to 19.61 N • Electric Z Stage Stroke: 40 mm
Measurement 0 µm to 10 µm or 0 µm to 100 µm (Optionally from 9.807 mN) Resolution: 0.001 mm
• Optical Monitor Equipped with ×500 microscope • Indentation Approx. 0.3 sec.
Measurement Time
• Equipped with revolving electric turret (HMV-G21T)
