Page 13 - Shimadzu C2MAP System

System Flexibility Creates New Value

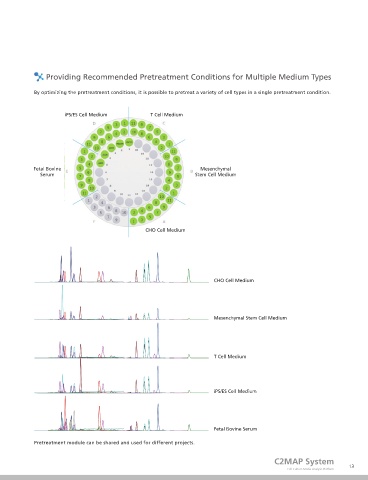

The automatic sample pretreatment unit and the LC/MS/MS unit can be installed in different laboratories for separate use. For Providing Recommended Pretreatment Conditions for Multiple Medium Types
example, everything up to sample pretreatment can be performed in the culture laboratory, while a shared LC/MS/MS can be
installed in a separate laboratory. By optimizing the pretreatment conditions, it is possible to pretreat a variety of cell types in a single pretreatment condition.

The culture supernatant samples cannot be brought out
of the culture laboratory, so sample pretreatment is The LCMS can be shared for other analyses. iPS/ES Cell Medium T Cell Medium
implemented in the culture laboratory.

Culture laboratory Analysis laboratory

Fetal Bovine Mesenchymal
Serum Stem Cell Medium

LC/MS/MS measurement is performed
Pretreatment is implemented in the culture laboratory.
in an analysis laboratory.
Note: Follow the regulations at the applicable company about bringing samples out of a culture laboratory.
CHO Cell Medium

CHO Cell Medium

Mesenchymal Stem Cell Medium
Development of processes Cellular research on stem cells Cellular research on T cells
for antibody drugs

T Cell Medium

iPS/ES Cell Medium

Fetal Bovine Serum
The LC/MS/MS can be shared for different projects.
Pretreatment module can be shared and used for different projects.

C2MAP System
12 13
Cell Culture Media Analysis Platform
