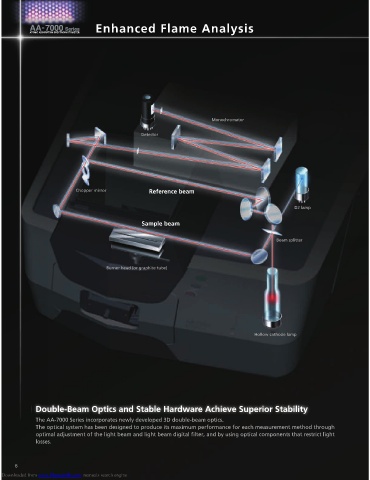

Enhanced Flame Analysis
Monochromator
Detector
Chopper mirror Reference beam
D2 lamp
Sample beam
Beam splitter
Burner head (or graphite tube)
Hollow cathode lamp
Double-Beam Optics and Stable Hardware Achieve Superior Stability
The AA-7000 Series incorporates newly developed 3D double-beam optics.
The optical system has been designed to produce its maximum performance for each measurement method through
optimal adjustment of the light beam and light beam digital filter, and by using optical components that restrict light
losses.
