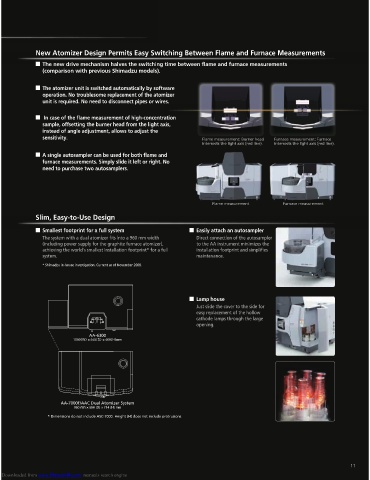

Page 11 - Shimadzu AA-7000

New Atomizer Design Permits Easy Switching Between Flame and Furnace Measurements
The new drive mechanism halves the switching time between flame and furnace measurements
(comparison with previous Shimadzu models).

The atomizer unit is switched automatically by software
operation. No troublesome replacement of the atomizer
unit is required. No need to disconnect pipes or wires.

In case of the flame measurement of high-concentration
sample, offsetting the burner head from the light axis,
instead of angle adjustment, allows to adjust the
sensitivity. Flame measurement: Burner head Furnace measurement: Furnace
intersects the light axis (red line). intersects the light axis (red line).
A single autosampler can be used for both flame and
furnace measurements. Simply slide it left or right. No
need to purchase two autosamplers.

Flame measurement Furnace measurement
Slim, Easy-to-Use Design

Smallest footprint for a full system Easily attach an autosampler
The system with a dual atomizer fits into a 960 mm width Direct connection of the autosampler
(including power supply for the graphite furnace atomizer), to the AA instrument minimizes the
achieving the world's smallest installation footprint* for a full installation footprint and simplifies
system. maintenance.
* Shimadzu in-house investigation. Current as of November 2008.

Lamp house
Just slide the cover to the side for
easy replacement of the hollow
cathode lamps through the large
opening.

AA-6300

AA-7000F/AAC Dual Atomizer System
* Dimensions do not include ASC-7000. Height (H) does not include protrusions.
