C122-E062

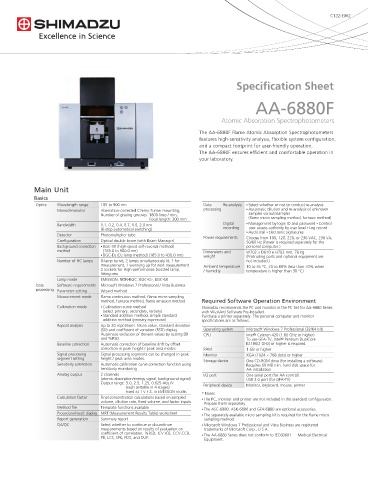

Specification Sheet

AA-6880F

Atomic Absorption Spectrophotometers

The AA-6880F Flame Atomic Absorption Spectrophotometers
features high-sensitivity analysis, flexible system configuration,
and a compact footprint for user-friendly operation.
The AA-6880F ensures efficient and comfortable operation in
your laboratory.

Main Unit
Basics
Optics Wavelength range 185 to 900 nm Data Re-analysis · Select whether or not to conduct re-analysis.
Monochromator Aberration-corrected Czerny-Turner mounting, processing · Automatic dilution and re-analysis of unknown
Number of grating grooves: 1800 lines / mm, samples via autosampler
Focal length: 300 mm (flame micro sampling method, furnace method)
Bandwidth 0.1, 0.2, 0.4, 0.7, 1.0, 2.0 nm Digital · Management by login ID and password · Control
(6-step automatical switching) recording user access authority by user level · Log record
· Audit trail · Electronic signatures
Detector Photomultiplier tube
Power requirements Choose from 100, 120, 220, or 230 VAC, 230 VA,
Configuration Optical double beam (with Beam Manager)
50/60 Hz (Power is required separately for the
Background correction · BGC-SR (high-speed self-reversal method) personal computer.)
method (185.0 to 900.0 nm) Dimensions and W702 × D610 × H702 mm, 78 kg
· BGC-D2 (D2 lamp method) (185.0 to 430.0 nm) weight (Protruding parts and optional equipment are
Number of HC lamps 8-lamp turret, 2 lamps simultaneously lit, 1 for not included.)
measurement, 1 warming up for next measurement Ambient temperature 10 to 35 °C, 20 to 80% (less than 70% when
2 sockets for High-performance boosted lamp, / humidity temperature is higher than 30 °C)
litting one
Lamp mode EMISSION, NON-BGC, BGC-D2, BGC-SR
Data Software requirements Microsoft Windows 7 Professional / Vista Business
processing Parameter setting Wizard method
Measurement mode Flame continuous method, flame micro sampling
method, furnace method, flame emission method Required Software Operation Environment
Calibration mode · Calibration curve method Shimadzu recommends the PC and monitor in the PC Set for AA-6880 Series
(select primary, secondary, tertiary) with WizAArd Software Pre-Installed.
· Standard addition method, simple standard Purchase a printer separately. The personal computer and monitor
addition method (primary expression) specifications are as follows.
Repeat analysis Up to 20 repetitions. Mean value, standard deviation
(SD) and coefficient of variation (RSD) display Operating system Microsoft Windows 7 Professional (32/64 bit)
Automatic exclusion of deviant values by setting SD CPU Intel ® Celeron 420 (1.60 GHz or higher)
and %RSD To use GFA-TV, Intel ® Pentium DualCore
Baseline correction Automatic correction of baseline drift by offset E2180(2 GHz) or higher is required.
correction in peak height / peak area modes. RAM 1 GB or higher
Signal processing Signal processing segments can be changed in peak Monitor XGA (1024 × 768 dots) or higher
segment setting height / peak area modes.
Storage device One CD-ROM drive (for installing a software)
Sensitivity correction Automatic calibration curve correction function using Requires 60 MB min. hard disk space for
sensitivity monitoring AA installation.
Analog output 2 channels I/O port One serial port (for AA control)
(atomic absorption/energy signal, background signal) USB 2.0 port (for GFA-TV)
Output range: 5.0, 2.5, 1.25, 0.625 Abs./V Peripheral device Monitor, keyboard, mouse, printer
(each settable in 4 stages)
Fixed at 1 V F.S. in EMISSION mode.
* Notes
Calculation factor Final concentration calculations based on sampled · The PC, monitor and printer are not included in the standard configuration.
volume, dilution rate, fixed volume, and factor inputs
Prepare them separately.
Method file Template functions available
· The ASC-6880, ASK-6880 and GFA-6880 are optional accessories.
Procedure/result display MRT (Measurement Results Table) worksheet
· The separately available micro sampling kit is required for the flame micro
Report generation Summary report sampling method.
QA/QC Select whether to continue or discontinue · Microsoft Windows 7 Professional and Vista Business are registered
measurements based on results of evaluation on trademarks of Microsoft Corp., U.S.A.
coefficient of correlation, %RSD, ICV.ICB, CCV.CCB, · The AA-6880 Series does not conform to IEC60601 –– Medical Electrical
PB, LCS, SPK, PDS, and DUP.
Equipment.
