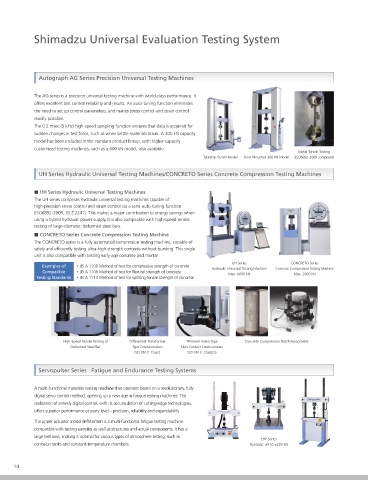

Shimadzu Universal Evaluation Testing System

Autograph AG Series Precision Universal Testing Machines

The AG series is a precision universal testing machine with world-class performance. It
offers excellent test control reliability and results. An auto-tuning function eliminates
the need to set up control parameters, and makes stress control and strain control
readily possible.
The 0.2 msec (5 kHz) high-speed sampling function ensures that data is acquired for
sudden changes in test force, such as when brittle materials break. A 300 kN capacity
model has been included in the standard product lineup, with higher-capacity
customized testing machines, such as a 600 kN model, also available.
Metal Tensile Testing
Tabletop 50 kN Model Floor-Mounted 300 kN Model (ISO6892-2009 compliant)

UH Series Hydraulic Universal Testing Machines/CONCRETO Series Concrete Compression Testing Machines

˙ UH Series Hydraulic Universal Testing Machines
The UH series comprises hydraulic universal testing machines capable of
high-precision stress control and strain control via a semi-auto-tuning function
(ISO6892-2009, JIS Z 2241). This makes a major contribution to energy savings when
using a hybrid hydraulic power supply. It is also compatible with high-speed tensile
testing of large-diameter, deformed steel bars.
˙ CONCRETO Series Concrete Compression Testing Machine
The CONCRETO series is a fully automated compression testing machine, capable of
safely and efficiently testing ultra-high-strength concrete without bursting. This single
unit is also compatible with testing early-age concrete and mortar.
UH Series CONCRETO Series
Examples of • JIS A 1108 Method of test for compressive strength of concrete
Hydraulic Universal Testing Machine Concrete Compression Testing Machine
Compatible • JIS A 1106 Method of test for flexural strength of concrete
Max. 4000 kN Max. 2000 kN
Testing Standards • JIS A 1113 Method of test for splitting tensile strength of concrete

High-Speed Tensile Testing of Differential Transformer TRViewX Video Type Concrete Compression Test/Extensometer
Deformed Steel Bar Type Extensometers Non-Contact Extensometer
ISO 9513 Class1 ISO 9513 Class0.5

Servopulser Series Fatigue and Endurance Testing Systems

A multi-functional materials testing machine that operates based on a revolutionary, fully
digital servo control method, opening up a new age in fatigue testing machines. The
realization of entirely digital control, with its accumulation of cutting-edge technologies,
offers superior performance at every level – precision, reliability and expandability.
The upper actuator model (left/center) is a multi-functional fatigue testing machine
compatible with testing samples as well as structures and actual components. It has a
large test area, making it optimal for various types of atmosphere testing, such as
EHF Series
corrosion tanks and constant-temperature chambers. Dynamic: ±5 to ±200 kN
