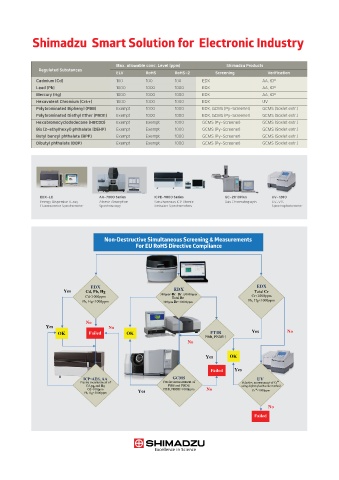

Shimadzu Smart Solution for Electronic Industry

Max. allowable conc. Level (ppm) Shimadzu Products
Regulated Substances
ELV RoHS RoHS-2 Screening Verification
Cadmium (Cd) 100 100 100 EDX AA, ICP
Lead (Pb) 1000 1000 1000 EDX AA, ICP
Mercury (Hg) 1000 1000 1000 EDX AA, ICP
Hexavalent Chromium (Cr6+) 1000 1000 1000 EDX UV
Polybrominated Biphenyl (PBB) Exempt 1000 1000 EDX, GCMS (Py-Screener) GCMS (Soxlet extr.)
Polybrominated Diethyl Ether (PBDE) Exempt 1000 1000 EDX, GCMS (Py-Screener) GCMS (Soxlet extr.)
Hexabromocyclododecane (HBCDD) Exempt Exempt 1000 GCMS (Py-Screener) GCMS (Soxlet extr.)
Bis (2-ethylhexyl) phthalate (DEHP) Exempt Exempt 1000 GCMS (Py-Screener) GCMS (Soxlet extr.)
Butyl benzyl phthalate (BPP) Exempt Exempt 1000 GCMS (Py-Screener) GCMS (Soxlet extr.)
Dibutyl phthalate (DBP) Exempt Exempt 1000 GCMS (Py-Screener) GCMS (Soxlet extr.)

EDX-LE AA-7000 Series ICPE-9800 Series GC-2010Plus UV-1280
Energy Dispersive X-ray Atomic Absorption Simultaneous ICP Atomic Gas Chromatograph UV-VIS
Fluorescence Spectrometer Spectroscopy Emission Spectrometers Spectrophotometer

Non-Destructive Simultaneous Screening & Measurements
For EU RoHS Directive Compliance

EDX EDX
Yes Cd, Pb, Hg EDX TotalCr
Cd<1000ppm 300ppm>Br Br >30000ppm Cr<1000ppm
Total Br
Pb, Hg<1000ppm 300ppm Br<30000ppm Pb, Hg<1000ppm

No
Yes No
FTIR
OK Failed OK PBB, PBDE ? Yes No
No

Yes OK

Failed Yes
ICP-AES, AA GCMS UV
Precise measurement of Precise measurement of Selective measurement of Cr +6
PBB and PBDE
Cd, and Hg PBB, PBDE<1000ppm No using diphenylcarbazide method
Pb
Cd<100ppm
+6
Pb, Hg<1000ppm Yes Cr <1000ppm
No
Failed
