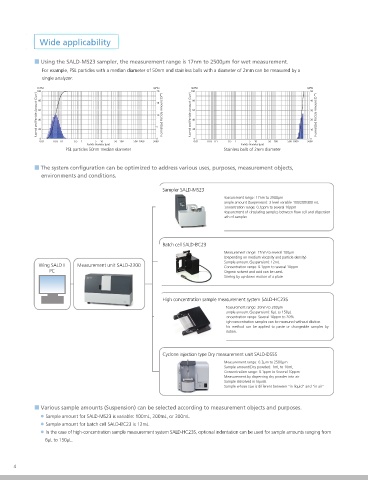

Page 4 - Shimadzu SALD-2300

Wide applicability High resolution Accurately detects particle size distribution with five peaks

■ Using the SALD-MS23 sampler, the measurement range is 17nm to 2500µm for wet measurement. Scattered light from coarse particles is concentrated at low angles near the optical axis and fluctuates vigorously within a tiny angle, but scattered
For example, PSL particles with a median diameter of 50nm and stainless balls with a diameter of 2mm can be measured by a light from microparticles fluctuates slowly up to large angles away from the center. Whereas the intensity of scattered light from coarse particles
single analyzer. is extremely high, the intensity of scattered light from microparticles is very low. The SALD-2300 achieves high resolution over a wide range of
particle sizes by utilizing the relationship between particle size and scattered light and increasing the detection surface area of each of the 78
Q3(%) q3(%) Q3(%) q3(%) 50 40 concentric detector elements in the Wing Sensor II at a logarithmic rate from the center outward. In addition to the Wing Sensor II, one sensor is
20
Normalized Particle Amount (Cum) 100 60 40 15 Normalized Particle Amount (Diff) Normalized Particle Amount (Cum) 100 60 40 30 20 Normalized Particle Amount (Diff) used for side scattered light and five sensors are used for backward scattered light.
80
80
q3(%)
Q3(%)
10
10
8
80
60
40
0 20 5 0 20 0 10 0 Normalized Particle Amount (Cum) 100 6 4 Normalized Particle Amount (Diff)
0.01 0.05 0.1 0.5 1 5 10 50 100 500 1000 5000 0.01 0.05 0.1 0.5 1 5 10 50 100 500 1000 5000
Particle Diameter (µm) Particle Diameter (µm)
PSL particles 50nm median diameter Stainless balls of 2mm diameter 20 2
0 0
0.01 0.05 0.1 0.5 1 5 10 50 100 500 1000 5000
Particle Diameter (µm)
■ The system configuration can be optimized to address various uses, purposes, measurement objects, Particle Size Distribution Data with Five Peaks Wing Sensor II
environments and conditions. Reliably reproduces particle size distributions with complicated distribution shapes.
This is an example of measuring a mixture of five types of particles, with diameters of
0.7, 2, 5, 25, and 100µm.
Sampler SALD-MS23
Measurement range: 17nm to 2500µm
Sample amount (Suspension): 3 level variable 100/200/300 mL High reliability
Concentration range: 0.1ppm to several 10ppm
Measurement of circulating samples between flow cell and dispersion
bath of sampler
■ Laser diffraction method ISO 13320 and JIS Z 8825-1 compliant
Complies with ISO 13320 and JIS Z 8825-1 laser diffraction and scattering standards.
Batch cell SALD-BC23 ■ Instrument validation with JIS standard particles
Measurement range: 17nm to several 100µm System performance can be confirmed using MBP1-10 standard particles specified in JIS Z 8900-1. These samples have a broad particle
(Depending on medium viscosity and particle density)
Sample amount (Suspension): 12mL size distribution; using these samples enables verification of the instrument's accuracy.
Wing SALD II Measurement unit SALD-2300 Concentration range: 0.1ppm to several 10ppm
PC Organic solvent and acid can be used. ■ Easy maintenance
Stirring by up-down motion of a plate
A powerful self-diagnostic function allows checking the output signals from each sensor and
detection element and the system's functional status. The operation log function stores detailed
High concentration sample measurement system SALD-HC23S information with all measurement data, such as the operating status and cell contamination
status. This allows retroactively verifying the validity of measurement data and confirming the
Measurement range: 30nm to 280µm
Sample amount (Suspension): 6µL to 150µL cell contamination status.
Concentration range: Several 10ppm to 20%
High-concentration samples can be measured without dilution.
This method can be applied to paste or changeable samples by
dilution. ■ Allows verifying measurement results (particle size distribution data) by
light intensity distribution data (raw data)
Since light intensity distribution data (raw data) and measurement results (particle size
Cyclone injection type Dry measurement unit SALD-DS5S distribution data) can be displayed on the same screen, measurement results can be verified
Measurement range: 0.3µm to 2500µm while viewing both sets of data. In addition to verifying whether the detection signal level
Sample amount(Dry powder): 1mL to 10mL
Concentration range: 0.1ppm to Several 10ppm (particle concentration) is appropriate or not, this enables confirming the validity of
Measurement by dispersing dry powder into air
Sample dissolved in liquids measurement results from multiple aspects, such as in terms of the distribution width and the
Sample whose size is different between “in liquid” and “in air” presence of aggregates and contaminants.

■ Various sample amounts (Suspension) can be selected according to measurement objects and purposes.
・ Sample amount for SALD-MS23 is variable: 100mL, 200mL, or 300mL. High reproducibility Improved stability of the optical system
・ Sample amount for batch cell SALD-BC23 is 12mL.
・ In the case of high-concentration sample measurement system SALD-HC23S, optional indentation can be used for sample amounts ranging from SALD systems utilize an OSAF (Omnidirectional Shock Absorption Frame), which completely isolates all elements of the optical system from
6µL to 150µL. impacts, vibration, and other external disturbances. Therefore, optical axes rarely need adjustment.
