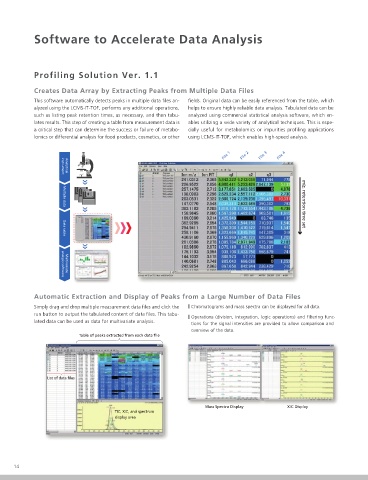

Page 14 - Shimadzu LCMS-IT-TOF

Software to Accelerate Data Analysis

Profiling Solution Ver. 1.1

Creates Data Array by Extracting Peaks from Multiple Data Files
This software automatically detects peaks in multiple data files an- fields. Original data can be easily referenced from the table, which
alyzed using the LCMS-IT-TOF, performs any additional operations, helps to ensure highly reliable data analysis. Tabulated data can be
such as listing peak retention times, as necessary, and then tabu- analyzed using commercial statistical analysis software, which en-
lates results. This step of creating a table from measurement data is ables utilizing a wide variety of analytical techniques. This is espe-
a critical step that can determine the success or failure of metabo- cially useful for metabolomics or impurities profiling applications
lomics or differential analysis for food products, cosmetics, or other using LCMS-IT-TOF, which enables high-speed analysis.

File 1 File 2 File 3 File 4 m/z, retention time set
Fi
Fi
Fi
Fi
Analytical
instrument

Multiple data

Data table

Multivariate
analysis software

Automatic Extraction and Display of Peaks from a Large Number of Data Files
Simply drag and drop multiple measurement data files and click the Chromatograms and mass spectra can be displayed for all data.
run button to output the tabulated content of data files. This tabu-
Operations (division, integration, logic operations) and filtering func-
lated data can be used as data for multivariate analysis.
tions for the signal intensities are provided to allow comparison and
overview of the data.
Table of peaks extracted from each data file

List of data files

XIC Display
Mass Spectra Display XIC Display
Mass Spectra Display
TIC, XIC, and spectrum
display area
