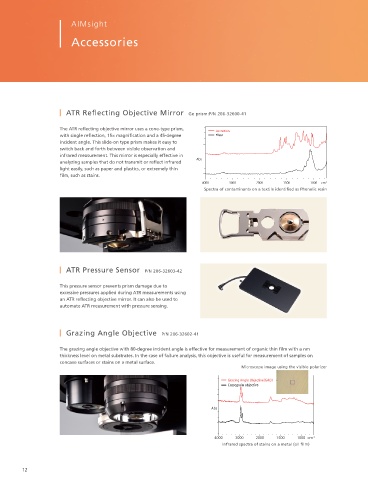

Page 12 - Shimadzu AIMsight

AIMsight

Accessories

ATR Reflecting Objective Mirror Ge prism:P/N 206-32600-41 DLATGS Detector P/N 206-32580-42 DLATGS detector
T2SL detector
The ATR reflecting objective mirror uses a cone-type prism, By adding this DLATGS detector to an AIMsight infrared
Accretion
with single reflection, 15× magnification and a 45-degree Fiber microscope, infrared spectra can be obtained without liquid
incident angle. This slide-on type prism makes it easy to nitrogen. It is also possible to switch back and forth Abs
switch back and forth between visible observation and between the T2SL and DLATGS detectors as needed. The
infrared measurement. This mirror is especially effective in DLATGS detector offers a wider wavenumber range (up to
analyzing samples that do not transmit or reflect infrared Abs 400 cm ) than the T2SL detector, but with lower sensitivity.
-1
light easily, such as paper and plastics, or extremely thin Therefore, the T2SL detector is used to measure micro
film, such as stains. samples less than 100 m. 4000 3000 2000 1500 1000 500 cm -1
Infrared spectra of polyvinyl chloride (PVC)
4000 3000 2000 1500 1000 cm -1
Spectra of contaminants on a textile identified as Phenolic resin

Diamond Cell CII P/N 208-92289-01

This diamond compression cell is used
to compress micro samples very thin After rolling
for direct measurement under the Before rolling
microscope. It can be used for
samples such as plastics and fibers. Abs
This CII cell features a large thin
window plate made of artificial
ATR Pressure Sensor P/N 206-32603-42 diamond (1.6 mm diameter). A type-B
cell that uses natural diamond is also
available.
This pressure sensor prevents prism damage due to
4000 3000 2000 1500 1000 cm -1
excessive pressures applied during ATR measurements using Infrared spectra of a single fiber
an ATR reflecting objective mirror. It can also be used to
automate ATR measurement with pressure sensing.

Micro Vise Holder P/N 206-33293
Grazing Angle Objective P/N 206-32602-41 This holder holds various types of samples for microscopy. It ensures positive holding of samples of a difficult shape or
measurement of a sample at a user-selectable angle. Measurement with a polarizer, with the sample under tensile load,
The grazing angle objective with 80-degree incident angle is effective for measurement of organic thin film with a nm provides information on the molecular orientation.
thickness level on metal substrates. In the case of failure analysis, this objective is useful for measurement of samples on
concave surfaces or stains on a metal surface.
Microscope image using the visible polarizer
Infrared Polarizer P/N 206-32605-41
Grazing Angle Objective(GAO)
Grazing Angle Objective(GA O)
Cassegrain objective
Cassegrain objective
This accessory is useful for researching the orientation characteristics of samples or increasing sensitivity with Grazing Angle
Objective measurements. It can be used by inserting it into the microscope from the side.
Abs

Visible Polarizer P/N 206-32540-41

4000 3000 2000 1500 1000 cm -1 This accessory is useful for visible observation of samples that are normally difficult to observe using visible light. Using the
Infrared spectra of stains on a metal (oil film) properties of polarized light can make samples easier to see.

12 13
