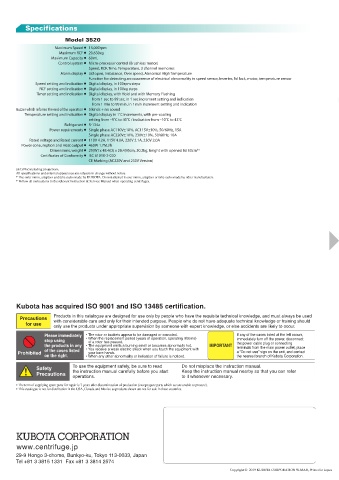

P. 4

Specifications

Model 3520
Maximum Speed¡ 15,000rpm
Maximum RCF¡ 20,630xg
Maximum Capacity¡ 60mL
Control system¡ Micro-processor control (Brushless motor)
Speed, RCF, Time, Temperature, 3 channel memories
Alarm display¡ Lid open, Imbalance, Over speed, Abnormal High Temperature
Function for detecting an occurrence of electrical abnormality in speed sensor, Inverter, lid lock, motor, temperature sensor
Speed setting and indication¡ Digital display, in 100rpm steps
RCF setting and indication¡ Digital display, in 100xg steps
Timer setting and indication¡ Digital display, with Hold and with Memory Flashing
from 1 sec to 99 sec, in 1 sec increment setting and indication
from 1 min to 99 min, in 1 min increment setting and indication
Buzzer which informs the end of the operation¡ 5 kinds + no sound
Temperature setting and indication¡ Digital display in 1˚C increments, with pre-cooling
setting from –9˚C to 40˚C / indication from –10˚C to 43˚C
Refrigerant¡ R-134a
Power requirements¡ Single phase AC110V±10%, AC115V±10%, 50/60Hz, 15A
Single phase AC220V±10%, 230V±10%, 50/60Hz, 10A
Rated voltage and Rated current¡ 110V 4.2A, 115V 4.0A, 220V 2.1A, 230V 2.0A
Power consumption and Heat output¡ 460W 1.7MJ/h
Dimensions, weight¡ 29(W) x 48.4(D) x 28.4(H)cm, 30.2kg, height with opened lid 53cm [1
Certificates of Conformity¡ IEC 61010-2-020
CE Marking (AC220V and 230V Version)
(✳1) Not including projections.
All specifications and external appearance are subjects to change without notice.
* Use only rotors, adaptors and tube racks made by KUBOTA. Do not attempt to use rotors, adaptors or tube racks made by other manufacturers.
* Follow all instructions in the relevant Instruction & Service Manual when operating centrifuges.

Kubota has acquired ISO 9001 and ISO 13485 certification.
Products in this catalogue are designed for use only by people who have the requisite technical knowledge, and must always be used
Precautions with considerable care and only for their intended purpose. People who do not have adequate technical knowledge or training should
for use
only use the products under appropriate supervision by someone with expert knowledge, or else accidents are likely to occur.
Please immediately • The rotor or buckets appear to be damaged or corroded. If any of the cases listed at the left occurs,
stop using • When the replacement period (years of operation, operating lifetime) immediately turn off the power, disconnect
of a rotor has passed.
the power cable plug or connecting
the products in any • The equipment emits a burning smell or becomes abnormally hot. IMPORTANT terminals from the main power outlet, place
of the cases listed • You receive a weak electric shock when you touch the equipment with a “Do not use” sign on the unit, and contact
Prohibited your bare hands.
on the right. • When any other abnormality or indication of failure is noticed. the nearest branch of Kubota Corporation.
To use the equipment safely, be sure to read Do not misplace the instruction manual.
Safety the instruction manual carefully before you start Keep the instruction manual nearby so that you can refer
Precautions
operations. to it whenever necessary.
• The term of supplying spare parts for repair is 7 years after discontinuation of production (except spare parts which we are unable to procure).
• This catalogue is not for distribution in the USA, Canada and Mexico as products shown are not for sale in these countries.
