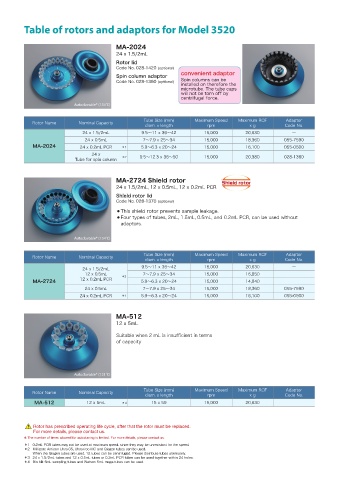

Table of rotors and adaptors for Model 3520



                                          MA-2024
                                          24 x 1.5/2mL
                                          Rotor lid
                                          Code No. 028-1420 (optional)
                                                                 convenient adaptor
                                          Spin column adaptor
                                                                 Spin columns can be
                                          Code No. 028-1360 (optional)
                                                                 installed on therefore the
                                                                 microtube. The tube caps
                                                                 will not be torn off by
                                                                 centrifugal force.
                           Autoclavable  (134˚C)
                                   ✽
            Rotor Name       Nominal Capacity      Tube Size (mm)    Maximum Speed   Maximum RCF     Adaptor
                                                    diam. x length        rpm            x g         Code No.
                              24 x 1.5/2mL         9.5〜11 x 36〜42        15,000        20,630           ―
                               24 x 0.5mL          7〜7.9 x 25〜34         15,000        18,360        055-7590
             MA-2024         24 x 0.2mL PCR  ＊1    5.9〜6.3 x 20〜24       15,000        16,100        055-0500
                                 24 x
                           Tube for spin column  ＊2  9.5〜12.3 x 36〜50    15,000        20,380        028-1360



                                          MA-2724 Shield rotor
                                          24 x 1.5/2mL, 12 x 0.5mL, 12 x 0.2mL PCR
                                          Shield rotor lid
                                          Code No. 028-1370 (optional)
                                          ¡This shield rotor prevents sample leakage.
                                          ¡Four types of tubes, 2mL, 1.5mL, 0.5mL, and 0.2mL PCR, can be used without
                                             adaptors.


                           Autoclavable  (134˚C)
                                   ✽

            Rotor Name       Nominal Capacity      Tube Size (mm)    Maximum Speed   Maximum RCF     Adaptor
                                                    diam. x length        rpm            x g         Code No.
                              24 x 1.5/2mL         9.5〜11 x 36〜42        15,000        20,630           ―
                               12 x 0.5mL          7〜7.9 x 25〜34         15,000        16,850           ―
                             12 x 0.2mL PCR  ＊3
             MA-2724                               5.9〜6.3 x 20〜24       15,000        14,840           ―
                               24 x 0.5mL          7〜7.9 x 25〜34         15,000        18,360        055-7590
                             24 x 0.2mL PCR  ＊1    5.9〜6.3 x 20〜24       15,000        16,100        055-0500



                                          MA-512
                                          12 x 5mL

                                          Suitable when 2 mL is insufficient in terms
                                          of capacity






                           Autoclavable  (121˚C)
                                   ✽
                                                   Tube Size (mm)    Maximum Speed   Maximum RCF     Adaptor
            Rotor Name       Nominal Capacity       diam. x length        rpm            x g         Code No.
             MA-512            12 x 5mL     ＊4        15 x 59            15,000        20,630           ―



             Rotor has prescribed operating life cycle, after that the rotor must be replaced.
             For more details, please contact us.
          ✽ The number of times allowed for autoclaving is limited. For more details, please contact us.
          ＊1  0.2mL PCR tubes may not be used at maximum speed. since they may be unresistant for the speed.
          ＊2  Millipore Amicon Ultra-05, Ultra-free-MC and Qiagen tubes can be used.
             When the Qiagen tubes are used, 12 tubes can be centrifuged. Please distribute tubes alternately.
          ＊3  24 x 1.5/2mL tubes and 12 x 0.5mL tubes or 0.2mL PCR tubes can be used together within 24 holes.
          ＊4  Bio bik 5mL sampling tubes and Watson 5mL mega tubes can be used.
